Lighting Systems
Oz Lighting module - Linear
L. 569mm
Code
1T8190DD
Light colour
2700K
90
90
Light distribution
Opal
Output
13.4W
868lm
868lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classF
Nominal power12W
Nominal flux1366lm
Colour rendering index90
Rf90.9
Rg100.1
CCT nominal2700K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

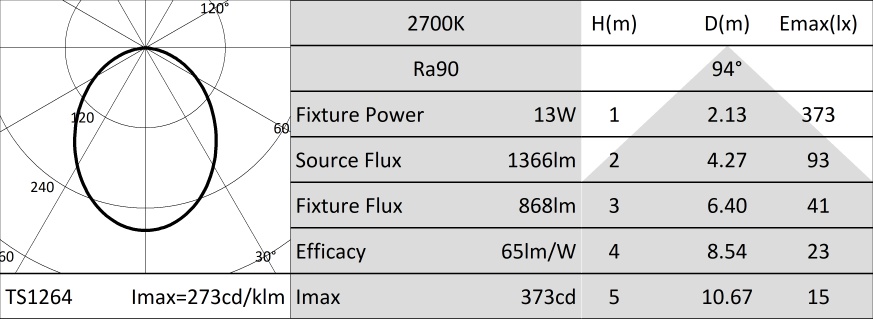

Illuminotechnical characteristics
Diffused light: white highly reflective MCPET reflector and opaline polycarbonate Louver screen.
EmissionOPAL
Optical efficiency64%
Fixture flux868lm
Luminous efficacy65lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted extruded aluminium body. L=569mm
Colour and finishPlaster white
DimensionsL=569mm
Weight0.57Kg
VersionDIGITAL DIMMING
Degree of protectionIP20
Electrical characteristics
Fixture Power13W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
