Lighting Systems
Oz Lighting module - Linear
L. 569mm
Code
1T8193
Light colour
4000K
90
90
Light distribution
Opal
Output
13.4W
979lm
979lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power12W
Nominal flux1540lm
Colour rendering index90
Rf89.8
Rg98.7
CCT nominal4000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

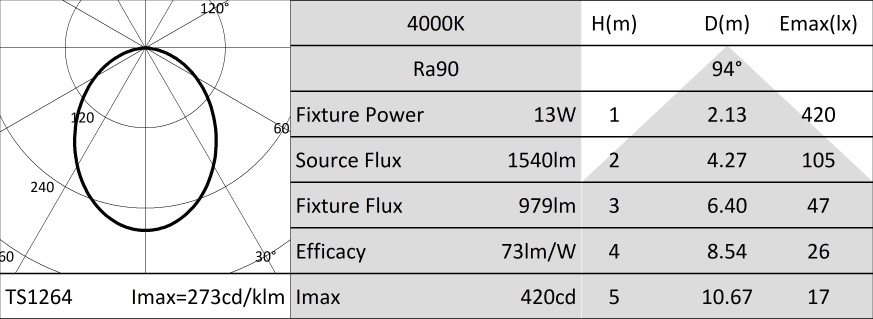

Illuminotechnical characteristics
Diffused light: white highly reflective MCPET reflector and opaline polycarbonate Louver screen.
EmissionOPAL
Optical efficiency64%
Fixture flux979lm
Luminous efficacy73lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted extruded aluminium body. L=569mm
Colour and finishPlaster white
DimensionsL=569mm
Weight0.57Kg
VersionSTANDARD
Degree of protectionIP20
Electrical characteristics
Fixture Power13W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
