Lighting Systems
Oz Lighting module - Linear - L. 569mm
Code
1T8193DD
Light colour
4000K
90
90
Light distribution
Opal
Output
13.4W
979lm
979lm
Power supply
Control
Control
48Vdc
Colour
1 / 3
Technical Data
Concept
Linear magnetic LED light modules powered at low voltage.
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power12W
Nominal flux1540lm
Colour rendering index90
Rf89.8
Rg98.7
CCT nominal4000K
SDCM3
Lifetime (L80/B10)100000h tq +25°C
Lifetime (L90/B10)59000h tq +25°C

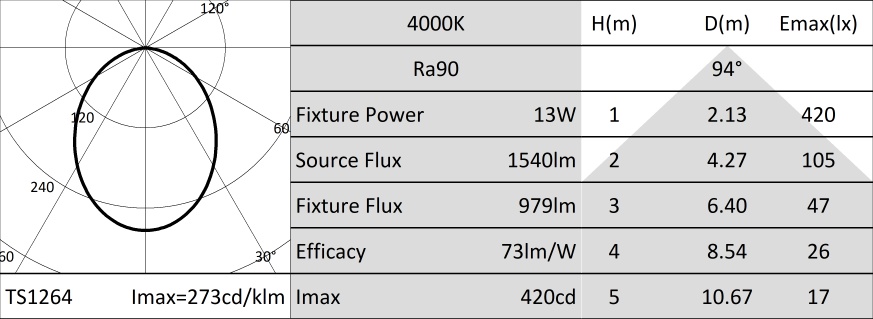

Illuminotechnical characteristics
Diffused light: white highly reflective MCPET reflector and opaline polycarbonate Louver screen.
OpticOpal
Optical efficiency63.57%
Fixture flux979lm
Luminous efficacy73lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted extruded aluminium body. L=569mm
Colour and finishPlaster white
DimensionsAxBxH 569x27x52mm
Weight0.57Kg
VersionDigital Dimming
Degree of protectionIP20
Electrical characteristics
Fixture Power13.4W
Power supply48Vdc
Insulation ClassCLASS 3
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
