Lighting Systems
Oz Lighting module - Linear
L. 569mm
Code
1T8195
Light colour
3000K
90
90
Light distribution
Opal
Output
13.4W
923lm
923lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power12W
Nominal flux1452lm
Colour rendering index90
Rf91.4
Rg100.8
CCT nominal3000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

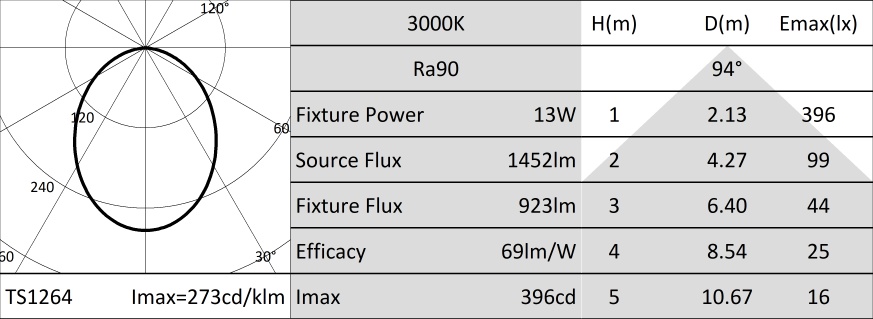

Illuminotechnical characteristics
Diffused light: white highly reflective MCPET reflector and opaline polycarbonate Louver screen.
EmissionOPAL
Optical efficiency64%
Fixture flux923lm
Luminous efficacy69lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted extruded aluminium body. L=569mm
Colour and finishDeep black
DimensionsL=569mm
Weight0.57Kg
VersionSTANDARD
Degree of protectionIP20
Electrical characteristics
Fixture Power13W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
