Lighting Systems

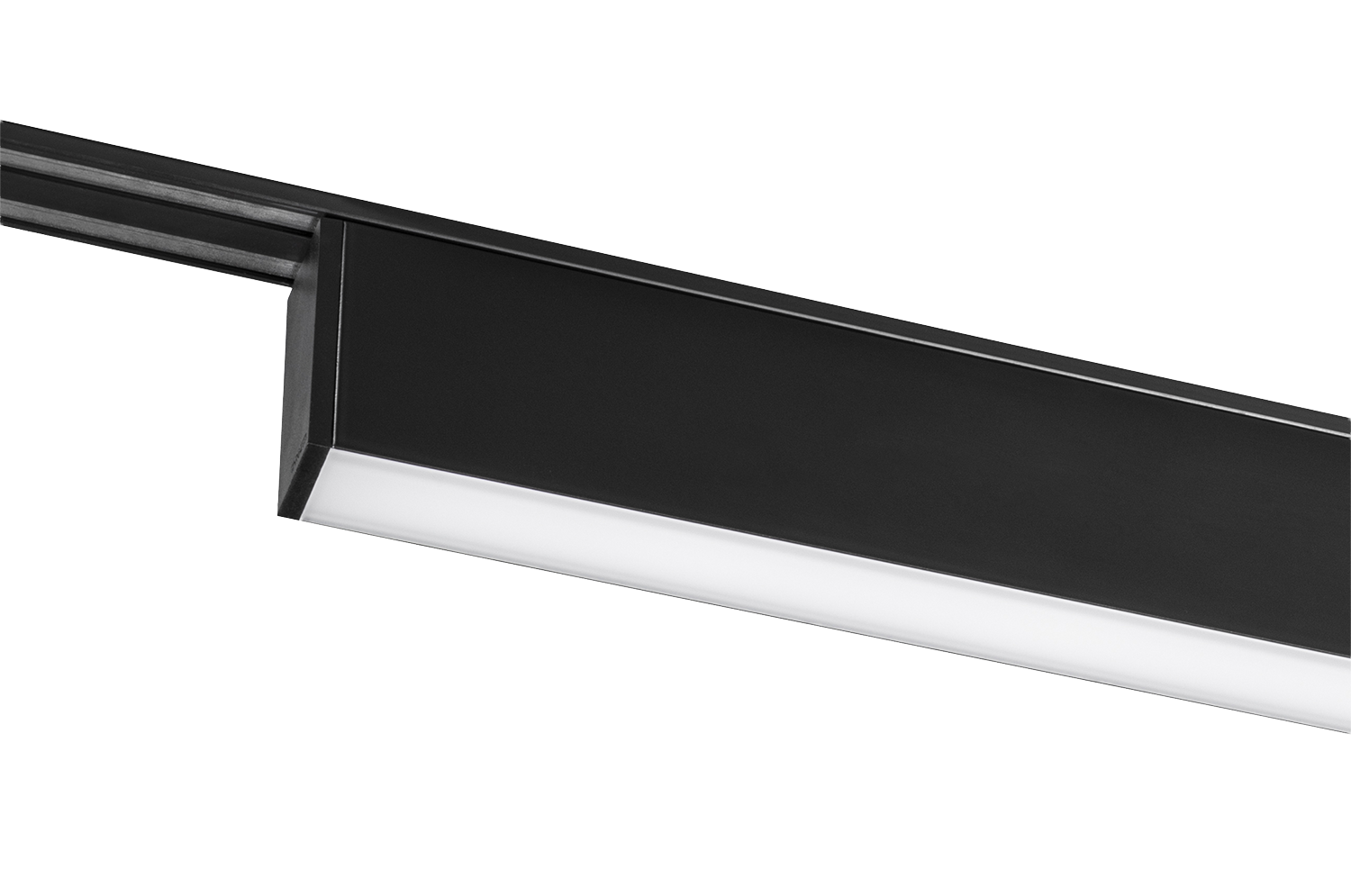

Oz Lighting module - Linear - L. 869mm
Code
1T8204
Light colour
3500K
90
90
Light distribution
Opal
Output
19.7W
1427lm
1427lm
Power supply
Control
Control
48Vdc
Colour
1 / 3
Technical Data
Concept
Linear magnetic LED light modules powered at low voltage.
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power18W
Nominal flux2244lm
Colour rendering index90
Rf90.3
Rg100.4
CCT nominal3500K
SDCM3
Lifetime (L80/B10)100000h tq +25°C
Lifetime (L90/B10)59000h tq +25°C

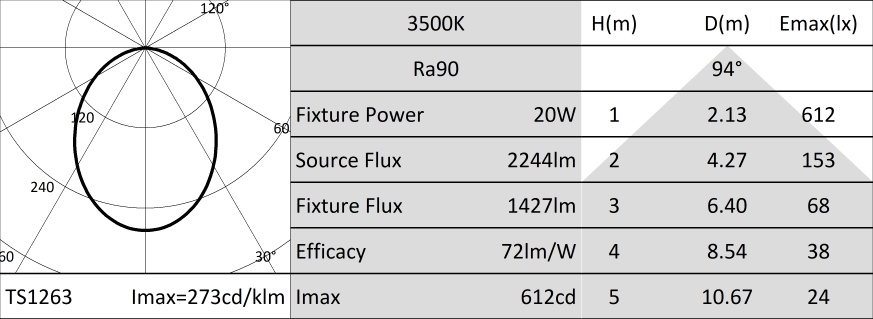

Illuminotechnical characteristics
Diffused light: white highly reflective MCPET reflector and opaline polycarbonate Louver screen.
OpticOpal
Optical efficiency63.57%
Fixture flux1427lm
Luminous efficacy72lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted extruded aluminium body. L=869mm
Colour and finishDeep black
DimensionsAxBxH 869x27x52mm
Weight0.83Kg
VersionON-OFF
Degree of protectionIP20
Electrical characteristics
Fixture Power19.7W
Power supply48Vdc
Insulation ClassCLASS 3
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
