Recessed luminaires
Oz Stand Alone Recessed
Large 1x - 60x60mm
Code
1T8489EL
Light colour
4000K
90
90
Light distribution
Ambient
Output
6.7W
675lm
675lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power5,8W
Nominal flux942lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

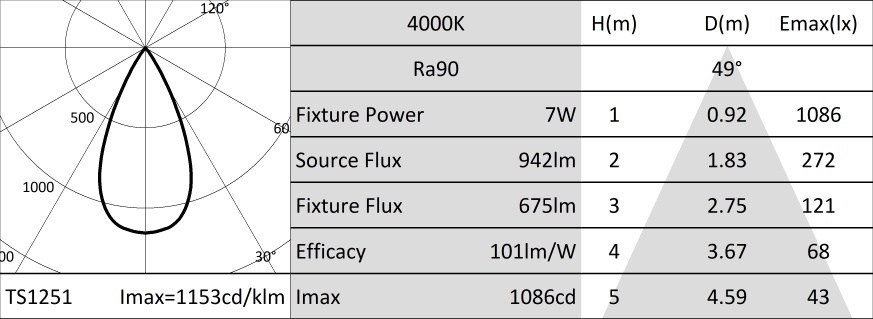

Illuminotechnical characteristics
AM optic. Anodised aluminium reflector, a holographic filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<14 (EN12464-1).
OpticREFLECTOR
Beam anglesAM
Optical efficiency72%
Fixture flux675lm
Luminous efficacy101lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. 1X Large version.
Colour and finishDeep black
DimensionsAxB=60x60mm
Weight0.16Kg
Version1X
Degree of protectionIP20
Electrical characteristics
Complete with an electronic ON-OFF driver. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power7W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick fastening system with springs for installation in false ceilings from 0 to 30mm.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
Accessories
| Code |
|---|
| A059 |
Emergency kit composed of an inverter a LIFePO4 battery and a LED Green indicator.
Allows permanent EP emergency use of the fixture it is connected to.
The 1h or 3h autonomy can be selected by configuring the fixture.
The batteries take 12h to completely recharge.
LED Green indicator wired to the inverter through single-core cables L= 800mm.
Emergency kit for fixtures that comply with EN 60598-2-22 standard, high risk areas excluded.
Battery size 160x54x30 mm.
Inverter size 165x40x25 mm.
