Recessed luminaires
CCTEvo Wall Washer 78
Code
1T8550EL
Light colour
2700K
90
90
Light distribution
Wall Washer
Output
13.4W
913lm
913lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra80 on request.
Energy efficiency classE
Nominal power12W
Nominal flux1507lm
Colour rendering index90
Rf92
Rg99
CCT nominal2700K
Lifetime (L80/B10)>50000h tq +25°C

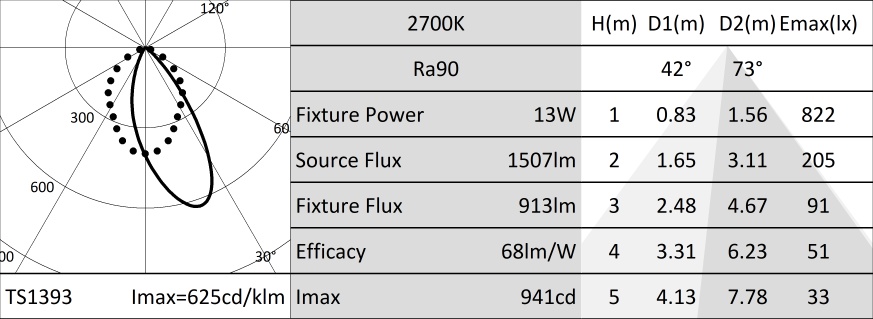

Illuminotechnical characteristics
WW Optic: a highly reflective pre-anodised aluminium asymmetric reflector, a holographic acrylic diffuser screen and thermoplastic load-bearing elements.
OpticWALL WASHER
Optical efficiency61%
Fixture flux913lm
Luminous efficacy68lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast black painted anodised aluminium heat sink. Black thermoplastic material structure and a white painted cut-off front. Silicone sealing kit for water and dust protection. Trim version with an integrated white painted die-cast aluminium ring.
Colour and finishPlaster white
Weight0.35Kg
VersionTRIM
Degree of protectionIP20 for recessed part
Degree of protectionIP54 for exposed part
Electrical characteristics
Integrated electronic ON-OFF driver.
Fixture Power13W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1T9606 | 2500 |
Anti-fall safety cable to secure the body of the appliance to the building structure.
