Recessed luminaires
CCTEvo Architectural 160
Trimless
Code
1T8592ELTR
Light colour
4000K
90
90
Light distribution
SP
21°
21°
Output
34.1W
3220lm
3220lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra80 on request.
Energy efficiency classE
Nominal power31W
Nominal flux4523lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

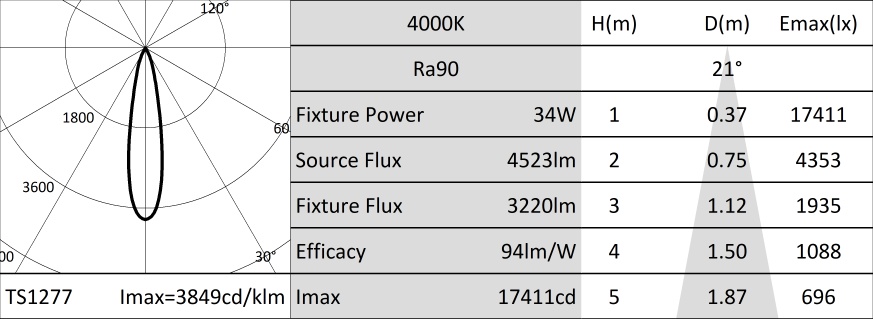

Illuminotechnical characteristics
SP - precision optics with a black silicone cut off ring. Version with a convex faceted highly reflective anodised aluminium reflector and a holographic diffusion filter. UGR<19 (EN 12464-1).
OpticREFLECTOR
Beam anglesSP
Optical efficiency71%
Fixture flux3220lm
Luminous efficacy94lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast white painted anodised aluminium body and dissipator. White colour cover. The optical unit can be adjusted up to 40° on the vertical plane with a mechanical beam locking system and a graduated scale, and 358° on the horizontal plane. Trimless version with a load-bearing element for installation and finishing in plasterboard.
Colour and finishPlaster white
Weight1.15Kg
VersionTRIMLESS
Degree of protectionIP20 for recessed part
Degree of protectionIP40 for exposed part
Electrical characteristics
Integrated electronic ON-OFF driver.
Fixture Power34W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T8094 | 63 |
Holographic PMMA filter with blade of light effect.
Allows the beam to be made oval; combined with spot and flood optics the effect appears more pronounced.
Cannot be used with HO versions.
Cannot be used with HO versions.
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T8093 | 63 |
Anti-glare louver.
Black painted metal honeycomb structure.
Cannot be used with HO versions.
Cannot be used with HO versions.
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1T9606 | 2500 |
Anti-fall safety cable to secure the body of the appliance to the building structure.
