Recessed luminaires
CCTEvo Architectural 160
HO
Code
1T8642EL
Light colour
3500K
90
90
Light distribution
FL
33°
33°
Output
73.7W
5660lm
5660lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra80 on request.
Energy efficiency classE
Nominal power66W
Nominal flux7803lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
Lifetime (L80/B10)>50000h tq +25°C

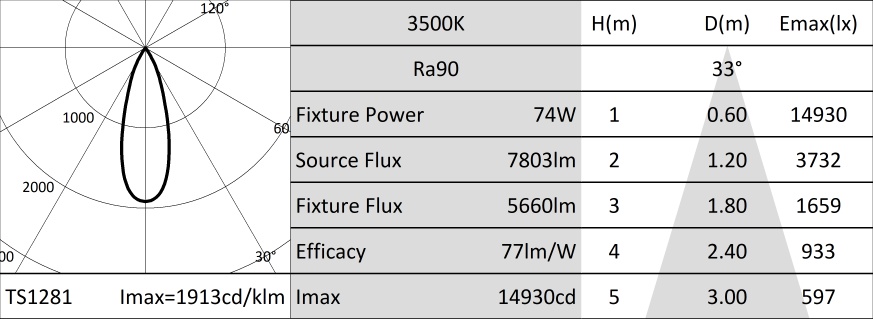

Illuminotechnical characteristics
FL - precision optics with a black silicone cut off ring. Version with a convex faceted highly reflective anodised aluminium reflector and a holographic diffusion filter. UGR<19 (EN 12464-1).
OpticREFLECTOR
Beam anglesFL (33°)
Optical efficiency73%
Fixture flux5660lm
Luminous efficacy77lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast black painted anodised aluminium body and dissipator. Black colour cover. The optical unit can be adjusted up to 30° on the vertical plane with a mechanical beam locking system and a graduated scale, and 358° on the horizontal plane. Trim version with an integrated black ring.
Colour and finishDeep black
Weight1.45Kg
VersionTRIM HO
Degree of protectionIP20 for recessed part
Degree of protectionIP40 for exposed part
Electrical characteristics
Integrated electronic ON-OFF driver.
Fixture Power74W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1T9606 | 2500 |
Anti-fall safety cable to secure the body of the appliance to the building structure.
