Wall mounted luminaires
Omega
Applique - L. 792mm
Code
1T9520EL
Light colour
3000K
90
90
Light distribution
Opal
Output
28W
1620lm
1620lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power23W
Nominal flux2876lm
Colour rendering index90
Rf91.4
Rg100.8
CCT nominal3000K
SDCM3
Lifetime (L80/B10)>50000h tq +25°C

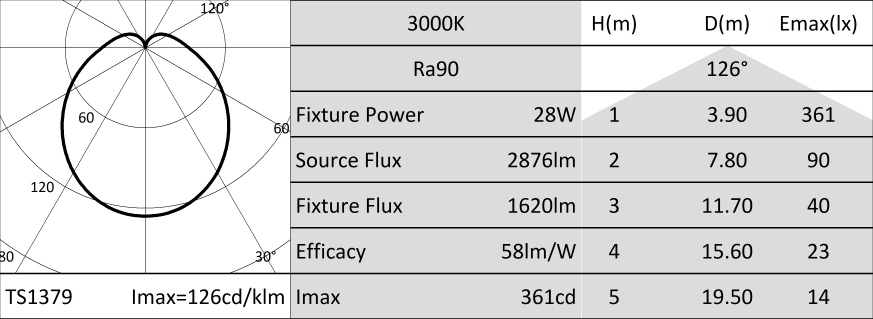

Illuminotechnical characteristics
Optical unit composed of an opal polycarbonate diffuser. Available in a direct emission version.
EmissionOPAL
Optical efficiency56%
Fixture flux1620lm
Luminous efficacy58lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted extruded aluminium body and painted aluminium optical unit and terminal. Opal polycarbonate screen.
Colour and finishFerrite
DimensionsL=792mm
Weight1.03Kg
VersionWALL
Degree of protectionIP20
Electrical characteristics
Integrated electronic power supply. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power28W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Versions for wall installation L=792mm with installation kit supplied with the product.
Notes
Designed in collaboration with Gensler. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
