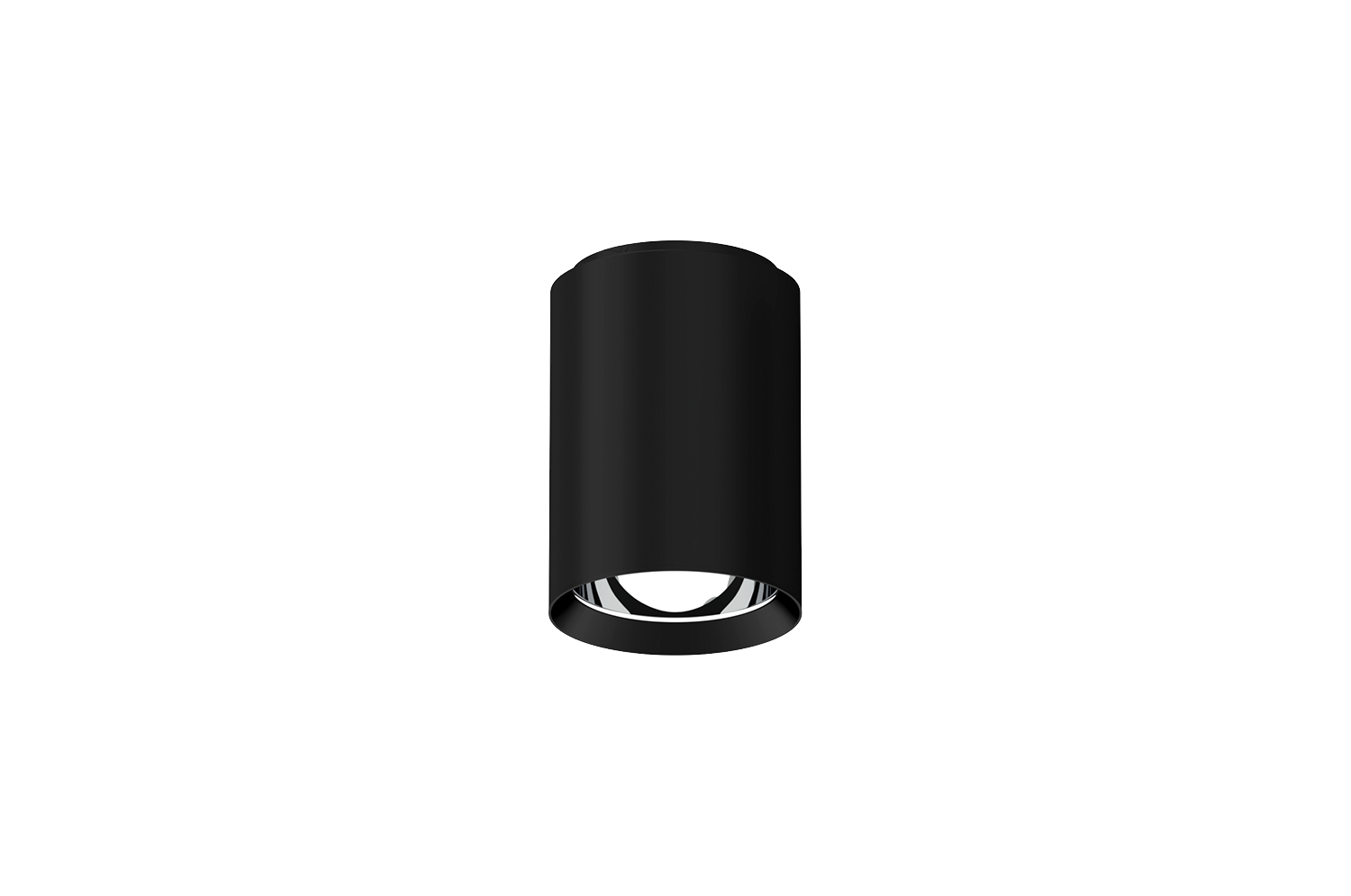

Pendant luminaires

CCTEvo Tube 180
WFL (UGR)

Code

1T9680DA

Light colour
3000K
90

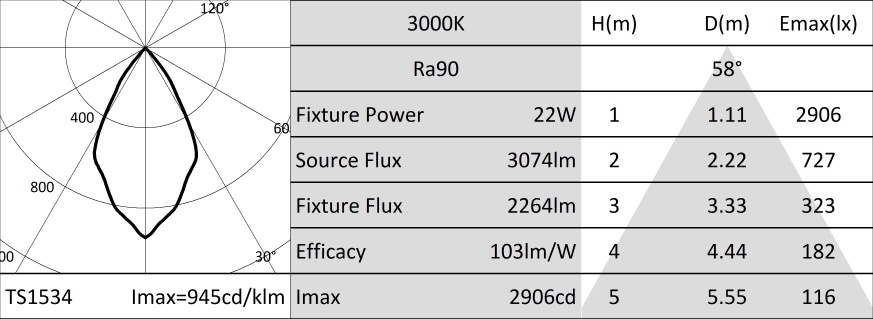

Light distribution
WFL (UGR)
58°
Output
22W
2264lm
Power supply Control
230Vac 50Hz
DALI
Colour
1.8
IP20
1 / 3
Prev
Next

Technical Data

Source
High efficiency Chip on Board LED Ra90. Ra80 on request.
Energy efficiency classE
Nominal power19,6W
Nominal flux3074lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Decorative cut-off ring in thermoplastic material. Low luminance deep UGR optic for high visual comfort. Optic composed of a deep thermoplastic reflector with reflective metallisation and a protective anti-scratch coating, a holographic acrylic diffuser screen and a highly reflective white thermoplastic internal recuperator. UGR<19 and L65<1000 cd/m² (EN 12464-1).
OpticREFLECTOR
Beam anglesWFL (UGR)
Optical efficiency74%
Fixture flux2264lm
Luminous efficacy103lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted aluminium body. Galvanized steel Internal structure and passive heat sink in die-cast aluminum with protective cataphoresis treatment.
Colour and finishDeep black
Weight1.8Kg
Degree of protectionIP20
Electrical characteristics
Dimmable DALI driver integrated in the body of the fixture. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power22W
Power supply230Vac 50Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI - PUSH
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
To be completed with ceiling, suspension or track mounting system.
Notes
Casambi control system available using a dedicated accessory. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Related codes
1 / 2
Prev
Next
CodeColour
1T9692

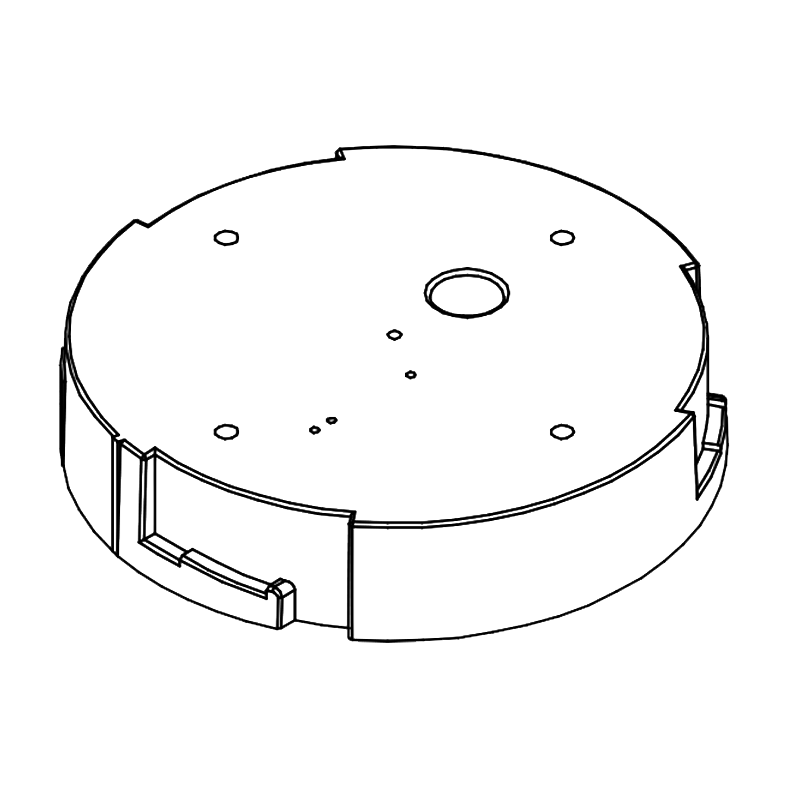

Ceiling mounting kit. For CCTEVO Tube 180.
1 / 2
Prev
Next
CodeColourDriverL mm
1T9694DADALI2000

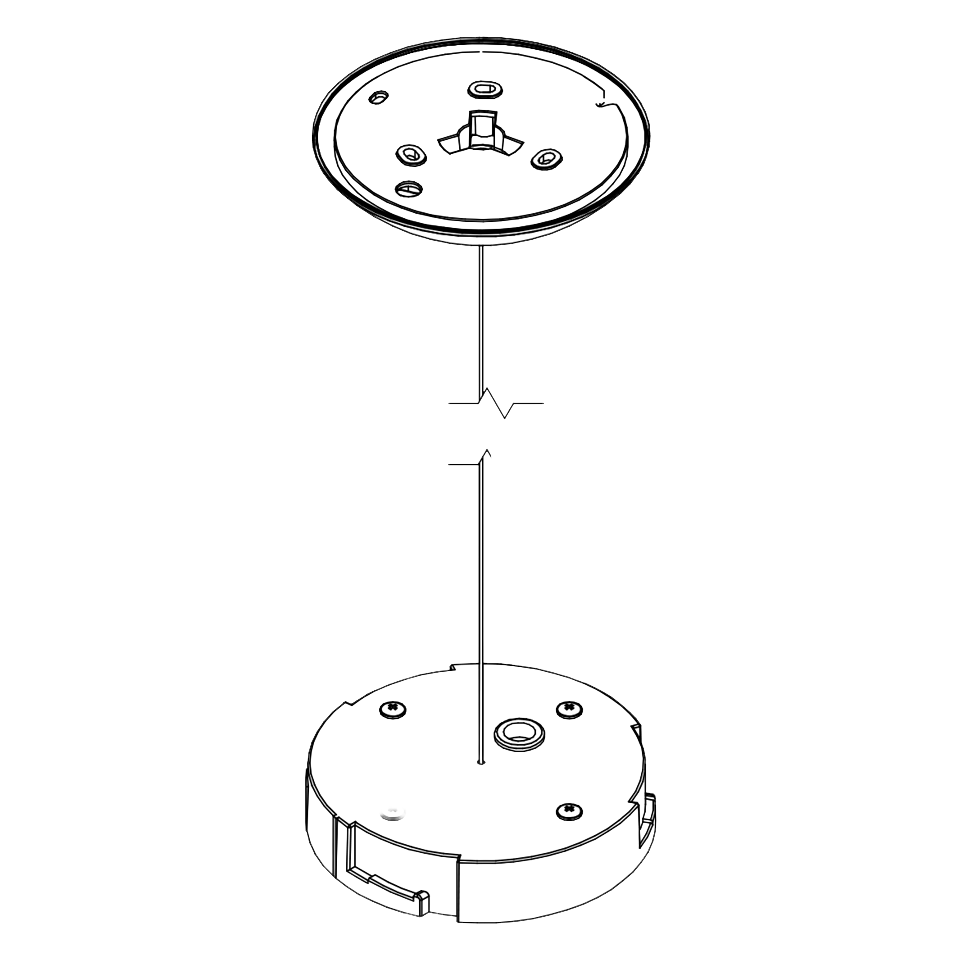

Suspension kit. For CCTEVO Tube 180.
1 / 2
Prev
Next
CodeColourDriver
1T9688DADALI

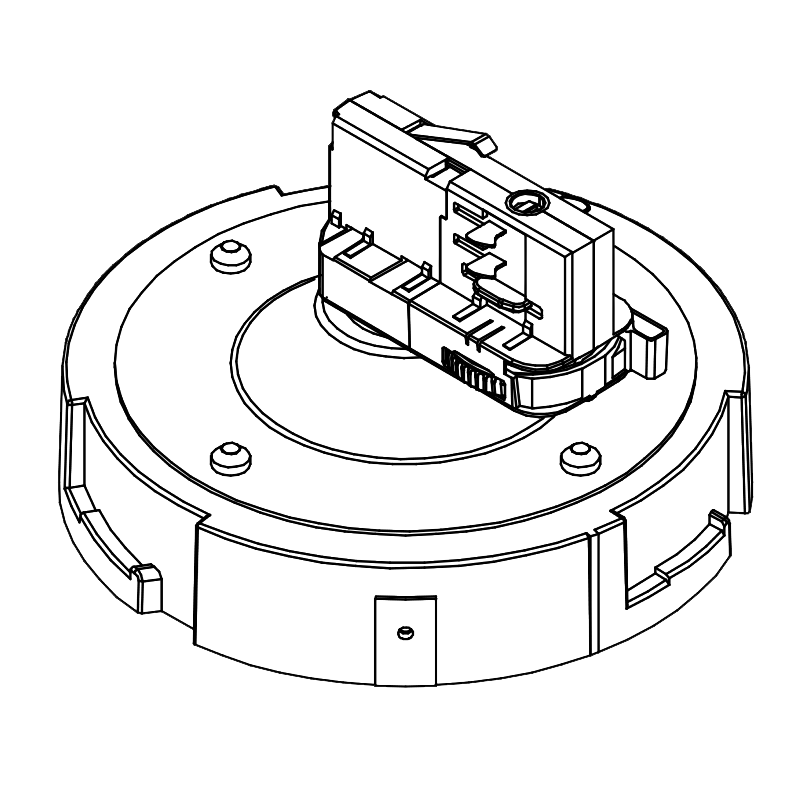

Kit for track installation. For CCTEVO Tube 180.
1 / 2
Prev
Next
CodeColourDriverL mm
1T9690DADALI2000

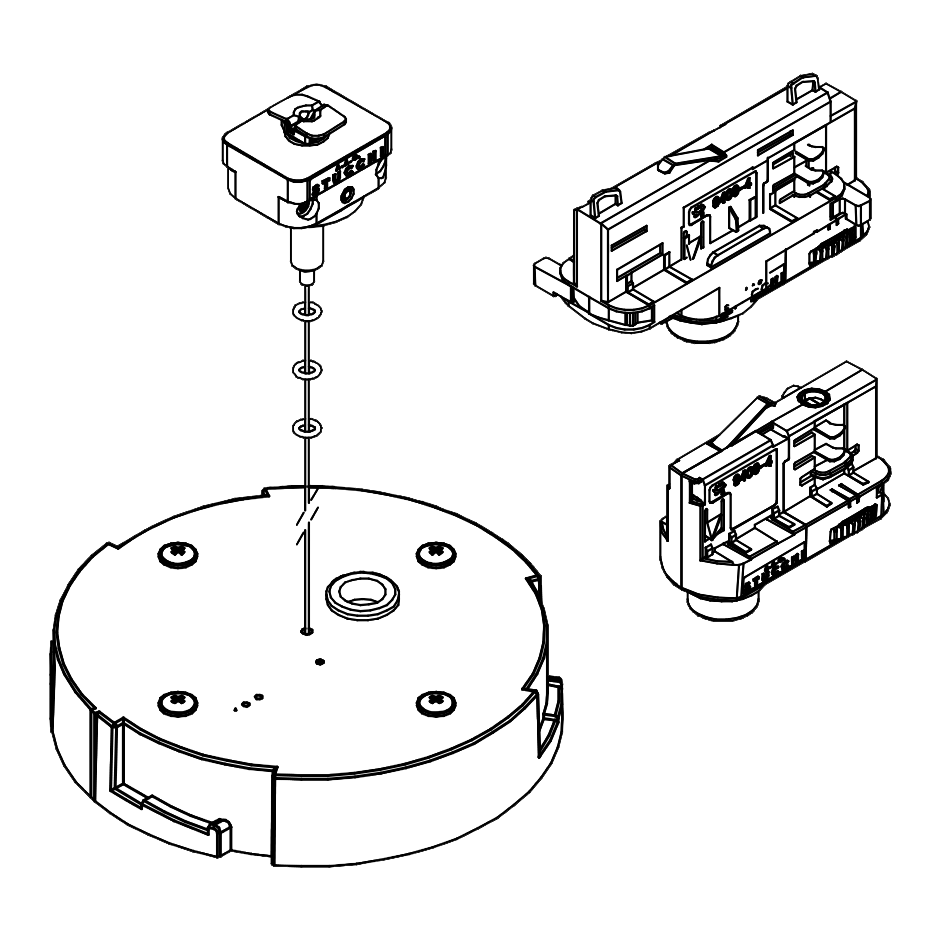

Track suspension kit. For CCTEVO Tube 180.

Accessories
1 / 2
Prev
Next
Code
1T5349
IP20 wireless control unit with DALI interface. It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver. The module can only be used in a closed system and cannot be connected to an existing DALI network. The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology. The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures. The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands. In addition to the DALI broadcast, other operating modes are available, such as:
  • Button (normally open)
  • Control unit 0/1-10V
  • Control unit DALI Tunable White DT8
  • Presence sensor
If different from the preset mode, the desired operating profile must be set directly by the user before coupling the control unit to the Casambi network. LxHxP=102x25x36mm.
1 / 2
Prev
Next
Code
2T0131
IP20 Extender for wireless control of LED driver with dimming DALI (or 1-10V) interface based on Casambi technology. It has a DALI2 output with the capacity to control up to 40 lighting fixtures. With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures. IP20 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level. In addition to the DALI broadcast other operating modes are available, such as:
  • EXTENDER DALI 8CH
  • EXTENDER DALI Tunable White
  • EXTENDER 0/1-10V
  • EXTENDER DALI 4CH
  • EXTENDER DALI DT8 Tunable White
If different from the preset mode, the desired operating profile must be set directly by the user before coupling the extender to the Casambi network. LxHxP=130x22x30mm.
