Lighting Systems
Fortyeight Label 6 - Fix
Code
1T9850EL
Light colour
3000K
90
90
Light distribution
FL
35°
35°
Output
9W
865lm
865lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. 3500K on request.
Energy efficiency classD
Nominal power8,3W
Nominal flux1182lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
SDCM1.5
Lifetime (L80/B10)>50000h tq +25°C

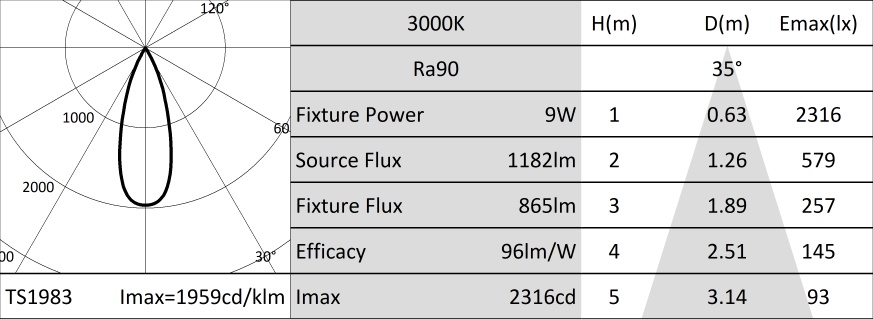

Illuminotechnical characteristics
FL version - convex faceted highly reflective anodised aluminium precision optics, holographic diffusion filter and black silicone cut off ring.
OpticREFLECTOR
Beam anglesFL
Optical efficiency73%
Fixture flux865lm
Luminous efficacy96lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Cylindrical body in aluminum obtained from an extrusion process and coated with powder paint.
Colour and finishPlaster white
DimensionsD=59mm
Weight0.6Kg
VersionON-OFF
Degree of protectionIP20
Electrical characteristics
ON-OFF version, track power supply.
Fixture Power9W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick coupling system for mounting the product on the track.
Notes
Not polarized fixture. White adapter. 110-277Vac version available on request. Not compatible with Fortyeight Trimless Deep track.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
