Lighting Systems
Fortyeight Label 7 - Suspension
Code
1T9892EL
Light colour
3000K
90
90

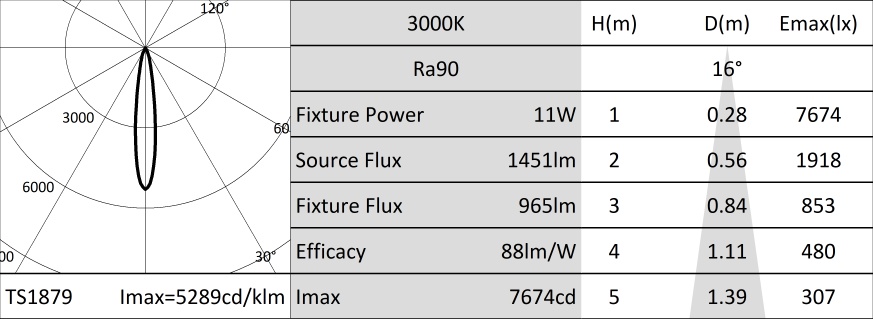

Light distribution
SP
16°
16°
Output
11W
965lm
965lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. 3500K on request.
Energy efficiency classD
Nominal power10W
Nominal flux1451lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
SDCM1.5
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
SP version - convex faceted highly reflective anodised aluminium precision optics, holographic diffusion filter and black silicone cut off ring.
OpticREFLECTOR
Beam anglesSP
Optical efficiency66%
Fixture flux965lm
Luminous efficacy88lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Cylindrical body in aluminum obtained from an extrusion process and coated with powder paint.
Colour and finishDeep black
DimensionsD=72mm
Weight0.8Kg
VersionON-OFF
Degree of protectionIP20
Electrical characteristics
ON-OFF version, track power supply.
Fixture Power11W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Complete with 2000mm long multicore suspension cable in coloured fabric with lenght adjustment system. Black feeding cable. Quick coupling system for mounting the product on the track.
Notes
Not polarized fixture. Black adapter. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
