Lighting Systems
Fortyeight Label 4 - Suspension
Code
1T9918EL
Light colour
2700K
90
90
Light distribution
SP
18°
18°
Output
7.5W
533lm
533lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. 3500K on request.
Energy efficiency classF
Nominal power6,9W
Nominal flux842lm
Colour rendering index90
Rf92
Rg99
CCT nominal2700K
SDCM1.5
Lifetime (L80/B10)>50000h tq +25°C

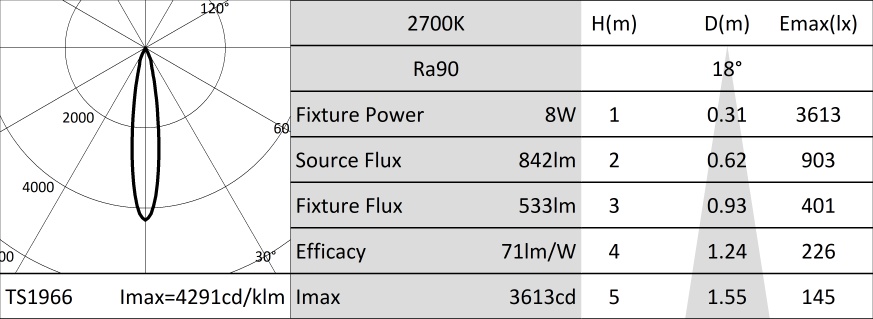

Illuminotechnical characteristics
SP Version - metallised polycarbonate precision optics, a holographic diffusion filter and a black silicone cut off ring.
OpticREFLECTOR
Beam anglesSP
Optical efficiency63%
Fixture flux533lm
Luminous efficacy71lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Cylindrical body in CNC machined aluminum and coated with powder paint.
Colour and finishPlaster white
DimensionsD=43mm
Weight0.4Kg
VersionON-OFF
Degree of protectionIP20
Electrical characteristics
ON-OFF version, track power supply.
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Complete with 2000mm long multicore suspension cable in coloured fabric with lenght adjustment system. White feeding cable. Quick coupling system for mounting the product on the track.
Notes
Not polarized fixture. White adapter. 110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
