Wall mounted luminaires
Label 6 - Wall
Code
1T9955EL
Light colour
4000K
90
90
Light distribution
MWFL
45°
45°
Output
19.1W
1964lm
1964lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. 2700K-3500K on request.
Energy efficiency classE
Nominal power17W
Nominal flux2642lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

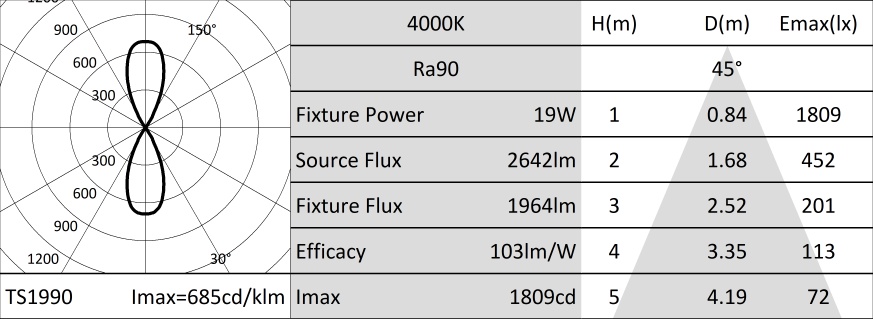

Illuminotechnical characteristics
MWFL version - convex faceted highly reflective anodised aluminium precision optics, a holographic diffusion filter and a black silicone cut off ring.
EmissionDIRECT/INDIRECT
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency74%
Fixture flux1964lm
Luminous efficacy103lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Cylindrical body in aluminum obtained through extrusion machining process and coated with powder paint.
Colour and finishDeep black
DimensionsD=59mm
Weight0.83Kg
Degree of protectionIP20
Electrical characteristics
Electronic ON-OFF version with the power supply integrated in the body of the fixture. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power19W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Kit with fixing plate for wall installation already included.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
