Wall mounted luminaires
Label 4 - Wall
Code
1T9958EL
Light colour
3000K
90
90
Light distribution
MWFL
42°
42°
Output
14.9W
1450lm
1450lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. 2700K-3500K on request.
Energy efficiency classD
Nominal power13W
Nominal flux1962lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C

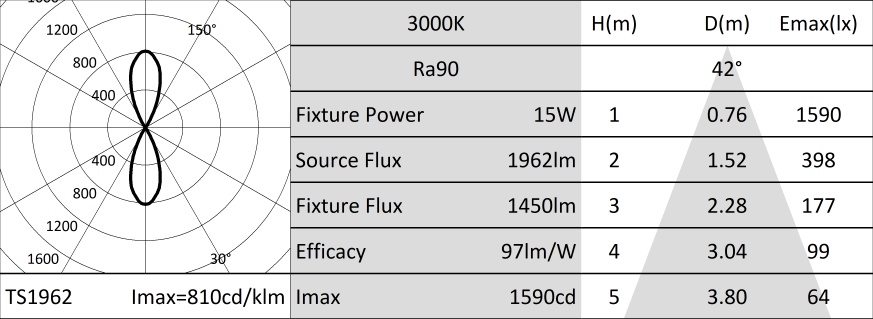

Illuminotechnical characteristics
MWFL version - convex faceted highly reflective anodised aluminium precision optics, a holographic diffusion filter and a black silicone cut off ring.
EmissionDIRECT/INDIRECT
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency74%
Fixture flux1450lm
Luminous efficacy97lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Cylindrical body in CNC machined aluminum and coated with powder paint.
Colour and finishDeep black
DimensionsD=43mm
Weight0.78Kg
Degree of protectionIP20
Electrical characteristics
Electronic ON-OFF version with the power supply integrated in the body of the fixture. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power15W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Kit with fixing plate for wall installation already included.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
