Lighting Systems
Oz Lighting module - Multiple
Small 5x - 25x125mm
Code
2T0070
Light colour
4000K
90
90
Light distribution
SP
11°
11°
Output
8.3W
549lm
549lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power7,3W
Nominal flux704lm
Colour rendering index90
Rf90.9
Rg101.1
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

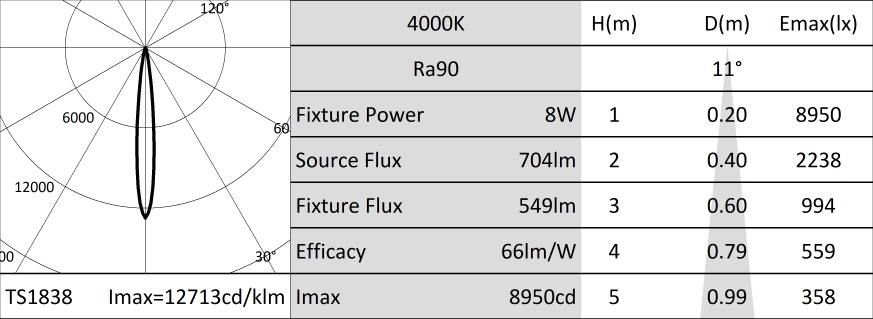

Illuminotechnical characteristics
The spot optic system has acrylic collimator lenses, an integrated holographic filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticLENS
Beam anglesSP
Optical efficiency78%
Fixture flux549lm
Luminous efficacy66lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Multiple fixed light, 125x25mm.
Colour and finishPlaster white
Dimensions25x125mm
Weight0.13Kg
Version5X STANDARD
Degree of protectionIP20
Electrical characteristics
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
