Lighting Systems
Oz Lighting module - Multiple
Small 5x - 25x125mm
Code
2T0075CA
Light colour
2700K
90
90
Light distribution
MWFL
41°
41°
Output
8.3W
448lm
448lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power7,3W
Nominal flux621lm
Colour rendering index90
Rf87.6
Rg103.9
CCT nominal2700K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

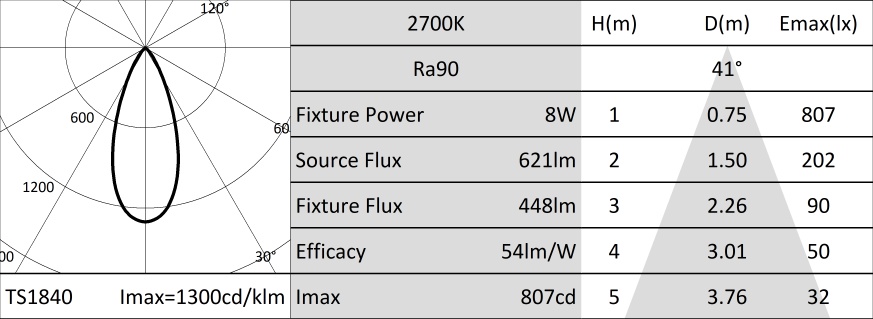

Illuminotechnical characteristics
The medium wide flood optical system has acrylic lenses and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticLENS
Beam anglesMWFL
Optical efficiency72%
Fixture flux448lm
Luminous efficacy54lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Multiple fixed light, 125x25mm.
Colour and finishPlaster white
Dimensions25x125mm
Weight0.13Kg
Version5X CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Integrated Casambi control system (Casambi Ready). DALI control system available using a special accessory. 110-277Vac version available on request.
Warranty
5 years.
