Lighting Systems
Oz Lighting module - Multiple
Small 5x - 25x125mm
Code
2T0084CA
Light colour
3000K
90
90
Light distribution
FL
28°
28°
Output
8.3W
490lm
490lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power7,3W
Nominal flux654lm
Colour rendering index90
Rf89.3
Rg104.3
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

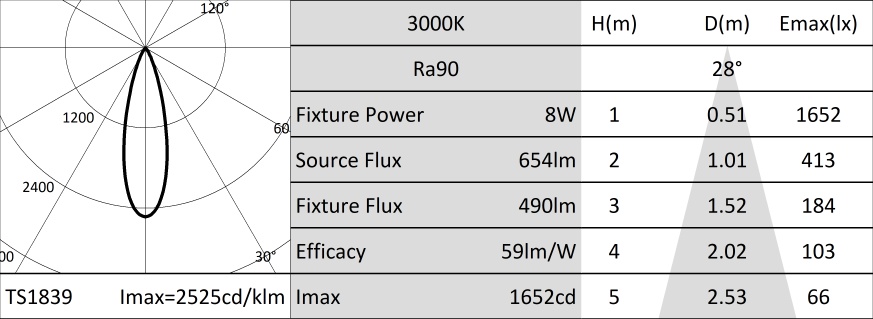

Illuminotechnical characteristics
The flood optical system has an acrylic lens and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticLENS
Beam anglesFL
Optical efficiency75%
Fixture flux490lm
Luminous efficacy59lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Multiple fixed light, 125x25mm.
Colour and finishDeep black
Dimensions25x125mm
Weight0.13Kg
Version5X CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Integrated Casambi control system (Casambi Ready). DALI control system available using a special accessory. 110-277Vac version available on request.
Warranty
5 years.
