Lighting Systems
Oz Lighting module - Multiple
Small 5x - 25x125mm
Code
2T0085DD
Light colour
3500K
90
90
Light distribution
FL
28°
28°
Output
8.3W
505lm
505lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power7,3W
Nominal flux674lm
Colour rendering index90
Rf91.4
Rg103.9
CCT nominal3500K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

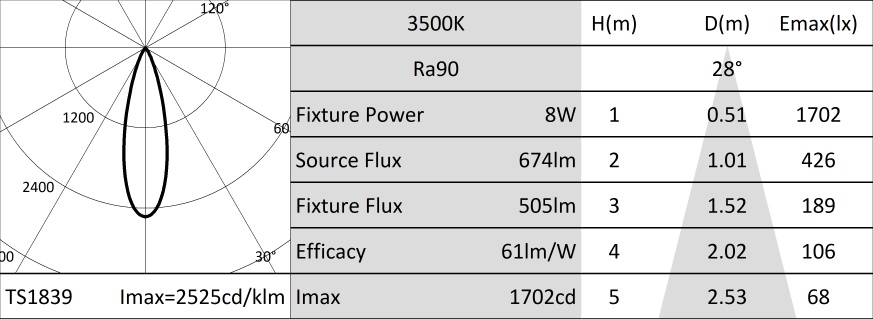

Illuminotechnical characteristics
The flood optical system has an acrylic lens and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticLENS
Beam anglesFL
Optical efficiency75%
Fixture flux505lm
Luminous efficacy61lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Multiple fixed light, 125x25mm.
Colour and finishDeep black
Dimensions25x125mm
Weight0.13Kg
Version5X DIGITAL DIMMING
Degree of protectionIP20
Electrical characteristics
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
