Lighting Systems
Oz Lighting module - Multiple - Small 5x - 25x125mm
Code
2T0089CA
Light colour
3500K
90
90
Light distribution
MWFL
41°
41°
Output
8.3W
487lm
487lm
Power supply
Control
Control
48Vdc
Colour
1 / 3
Technical Data
Concept
Fixed multiple magnetic LED light modules, powered at low voltage.
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power7,3W
Nominal flux674lm
Colour rendering index90
Rf91.4
Rg103.9
CCT nominal3500K
SDCM2
Lifetime (L80/B10)100000h tq +25°C
Lifetime (L90/B10)72000h tq +25°C

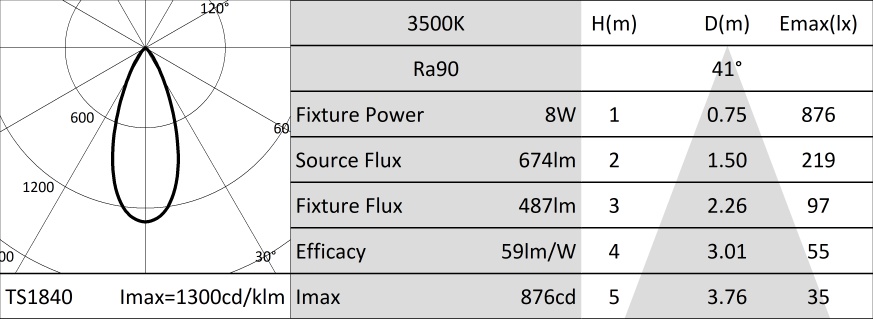

Illuminotechnical characteristics
The medium wide flood optical system has acrylic lenses and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticMWFL
Beam anglesMWFL
Optical efficiency72.2%
Fixture flux487lm
Luminous efficacy59lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Multiple fixed light, 125x25mm.
Colour and finishDeep black
DimensionsAxBxH 125x25x50mm
Weight0.13Kg
Version5X CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power8.3W
Power supply48Vdc
Insulation ClassCLASS 3
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Integrated Casambi control system (Casambi Ready). DALI control system available using a special accessory. 110-277Vac version available on request.
Warranty
5 years.
