Lighting Systems
Oz Lighting module - Multiple
Large 3x - 50x150mm
Code
2T0097
Light colour
3500K
90
90

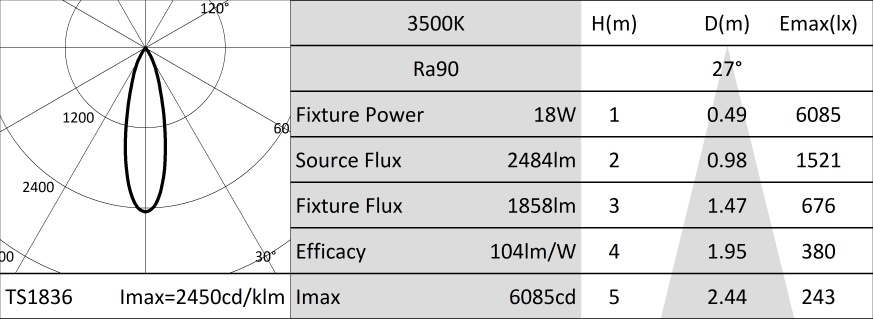

Light distribution
FL
27°
27°
Output
17.8W
1858lm
1858lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power16W
Nominal flux2484lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
The flood optical system consists of a metallised polycarbonate precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticREFLECTOR
Beam anglesFL
Optical efficiency75%
Fixture flux1858lm
Luminous efficacy104lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Multiple fixed light, 150x50mm.
Colour and finishPlaster white
Dimensions50x150mm
Weight0.21Kg
Version3X STANDARD
Degree of protectionIP20
Electrical characteristics
Fixture Power18W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
