Lighting Systems
Oz Lighting module - Multiple - Large 3x - 50x150mm
Code
2T0101DD
Light colour
3500K
90
90
Light distribution
MWFL
37°
37°
Output
17.8W
2047lm
2047lm
Power supply
Control
Control
48Vdc
Colour
1 / 3
Technical Data
Concept
Fixed multiple magnetic LED light modules, powered at low voltage.
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power16W
Nominal flux2484lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
SDCM2
Lifetime (L80/B10)72000h tq +25°C
Lifetime (L90/B10)72000h tq +25°C

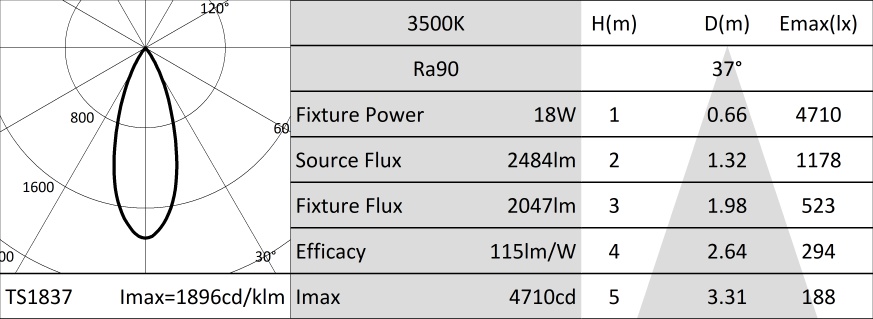

Illuminotechnical characteristics
Convex faceted anodised mirror finish aluminium, medium wide flood precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticMWFL
Beam anglesMWFL
Optical efficiency82.4%
Fixture flux2047lm
Luminous efficacy115lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Multiple fixed light, 150x50mm.
Colour and finishPlaster white
DimensionsAxBxH 150x50x50mm
Weight0.21Kg
Version3X Digital Dimming
Degree of protectionIP20
Electrical characteristics
Fixture Power17.8W
Power supply48Vdc
Insulation ClassCLASS 3
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
