Lighting Systems
Oz Lighting module - Multiple
Large 3x - 50x150mm
Code
2T0102CA
Light colour
4000K
90
90
Light distribution
MWFL
37°
37°
Output
17.8W
2128lm
2128lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power16W
Nominal flux2583lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

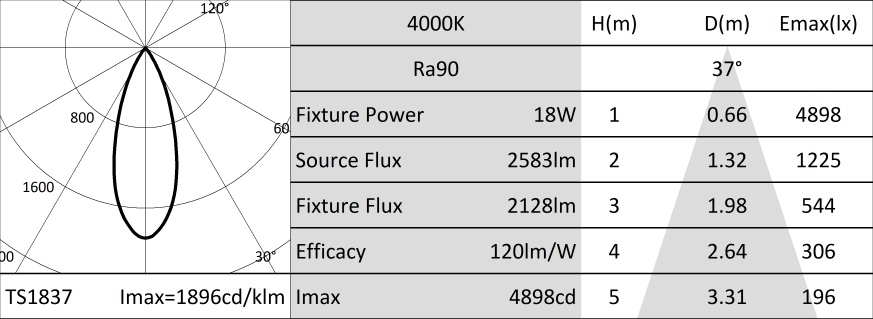

Illuminotechnical characteristics
Convex faceted anodised mirror finish aluminium, medium wide flood precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency82%
Fixture flux2128lm
Luminous efficacy120lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Multiple fixed light, 150x50mm.
Colour and finishPlaster white
Dimensions50x150mm
Weight0.21Kg
Version3X CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power18W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Integrated Casambi control system (Casambi Ready). DALI control system available using a special accessory. 110-277Vac version available on request.
Warranty
5 years.
