Lighting Systems
Oz Lighting module - Multiple
Large 3x - 50x150mm
Code
2T0105
Light colour
3500K
90
90
Light distribution
SP
19°
19°
Output
18.8W
1851lm
1851lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classF
Nominal power17W
Nominal flux2265lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

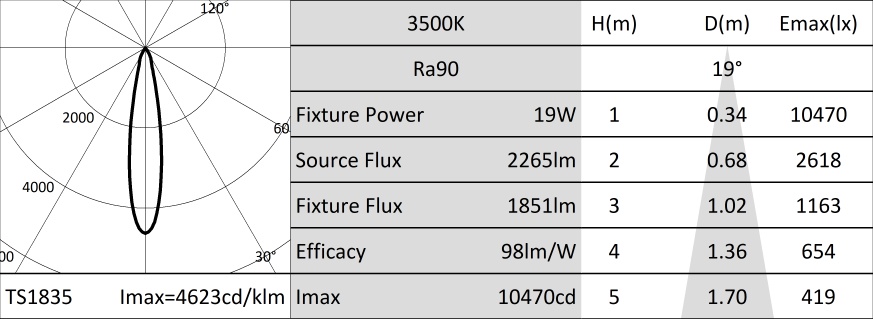

Illuminotechnical characteristics
The spot optic system has a metallised polycarbonate precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticREFLECTOR
Beam anglesSP
Optical efficiency82%
Fixture flux1851lm
Luminous efficacy98lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Multiple fixed light, 150x50mm.
Colour and finishDeep black
Dimensions50x150mm
Weight0.21Kg
Version3X STANDARD
Degree of protectionIP20
Electrical characteristics
Fixture Power19W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
