Lighting Systems
Oz Lighting module - Multiple - Large 3x - 50x150mm
Code
2T0105CA
Light colour
3500K
90
90
Light distribution
SP
19°
19°
Output
18.8W
1851lm
1851lm
Power supply
Control
Control
48Vdc
Colour
1 / 3
Technical Data
Concept
Fixed multiple magnetic LED light modules, powered at low voltage.
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classF
Nominal power17W
Nominal flux2265lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
SDCM2
Lifetime (L80/B10)52000h tq +25°C
Lifetime (L90/B10)52000h tq +25°C

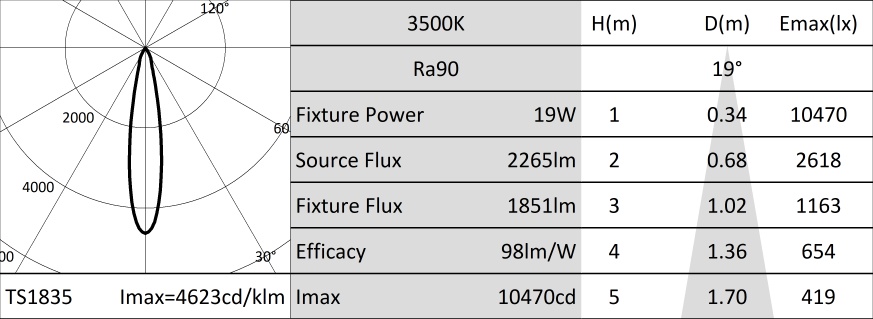

Illuminotechnical characteristics
The spot optic system has a metallised polycarbonate precision optic, a holographic diffuser filter and a black polycarbonate frame. The light is suitable for installation in work environments UGR<19 (EN12464-1).
OpticSP
Beam anglesSP
Optical efficiency81.7%
Fixture flux1851lm
Luminous efficacy98lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. Multiple fixed light, 150x50mm.
Colour and finishDeep black
DimensionsAxBxH 150x50x50mm
Weight0.21Kg
Version3X CASAMBI
Degree of protectionIP20
Electrical characteristics
Fixture Power18.8W
Power supply48Vdc
Insulation ClassCLASS 3
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Integrated Casambi control system (Casambi Ready). DALI control system available using a special accessory. 110-277Vac version available on request.
Warranty
5 years.
