Lighting Systems
Oz Lighting module - Wall Washer
Small - 25x125mm
Code
2T0115
Light colour
2700K
90
90
Light distribution
Wall Washer
Output
8.3W
399lm
399lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
Hugh efficiency Ra90 LED Emitter.
Energy efficiency classF
Nominal power7,3W
Nominal flux621lm
Colour rendering index90
Rf87.6
Rg103.9
CCT nominal2700K
Lifetime (L80/B10)>50000h tq +25°C

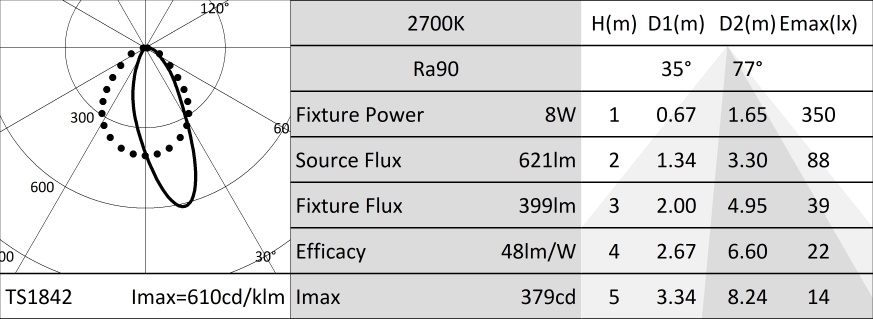

Illuminotechnical characteristics
Wall Washer optical system: a high reflectance anodised aluminium reflector, holographic diffuser filter, frame in black polycarbonate.
OpticWALL WASHER
Optical efficiency64%
Fixture flux399lm
Luminous efficacy48lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Sizes 125x25mm.
Colour and finishPlaster white
Dimensions25x125mm
Weight0.24Kg
VersionSTANDARD
Degree of protectionIP20
Electrical characteristics
Fixture Power8W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
110-277Vac version available on request.
Warranty
5 years.
