Lighting Systems
Oz Lighting module - Wall Washer
Large - 50x150mm
Code
2T0123DD
Light colour
2700K
90
90
Light distribution
Wall Washer
Output
17.8W
1604lm
1604lm
Power supply
Control
48Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power16W
Nominal flux2241lm
Colour rendering index90
Rf92
Rg99
CCT nominal2700K
Lifetime (L80/B10)>50000h tq +25°C

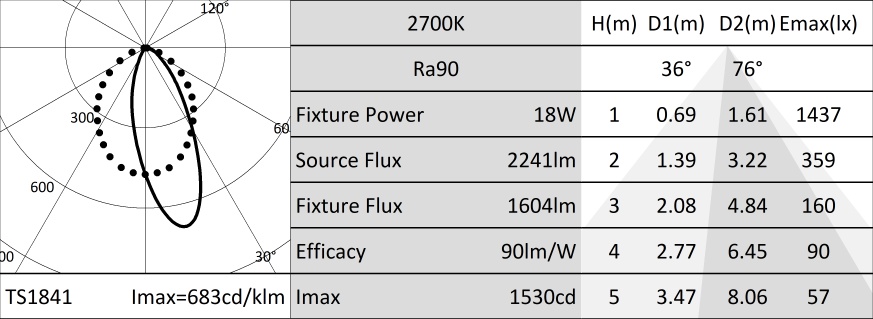

Illuminotechnical characteristics
Wall Washer optical system: a high reflectance anodised aluminium reflector, holographic diffuser filter, frame in black polycarbonate.
OpticWALL WASHER
Optical efficiency72%
Fixture flux1604lm
Luminous efficacy90lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Sizes 150x50mm.
Colour and finishPlaster white
Dimensions50x150mm
Weight0.24Kg
VersionDIGITAL DIMMING
Degree of protectionIP20
Electrical characteristics
Fixture Power18W
Power supply48Vdc
Insulation ClassCLASS 3
Class FYES
Ambient temperature0°C / +25°C
Installation
Extremely rapid, versatile and simple mechanical and electrical coupling system using magnets which support the fixture on the Power Track and feed power inside the fixture on all versions.
Notes
Digital Dimming version. 110-277Vac version available on request.
Warranty
5 years.
