Projectors
Vader Solo
Code
E012ZM922BT
Light colour
2200K
90
90
Light distribution
Zoom
24°-41°
24°-41°
Output
35.4W
2464-2550lm
2464-2550lm
Power supply
Control
1050mA
Colour
SP / 1050mA
MWFL / 1050mA
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90 (2200K).
Energy efficiency classE
Nominal power35W
Nominal flux4014lm
Colour rendering index90
Rf91
Rg101
CCT nominal2200K
Lifetime (L80/B10)70000h tq +25°C
Illuminotechnical characteristics
Zoom optic composed of three PMMA elements operating together, a fixed TIR lens and a second adjustable lens. Rotation of 22° using the front sealing ring of the second lens allows for the zoom range between the minimum and maximum beam opening respectively of 24° and 41°. Graduated adjustment scale with 2 steps. Optic group pre-set for the installation of one or more dedicated optical accessories to be ordered separately.
OpticLENS
Beam anglesFL-MWFL

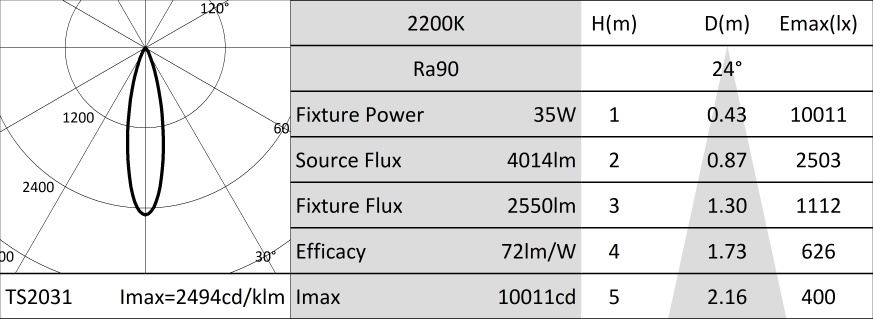

Optical efficiencySP / 1050mA - 64%

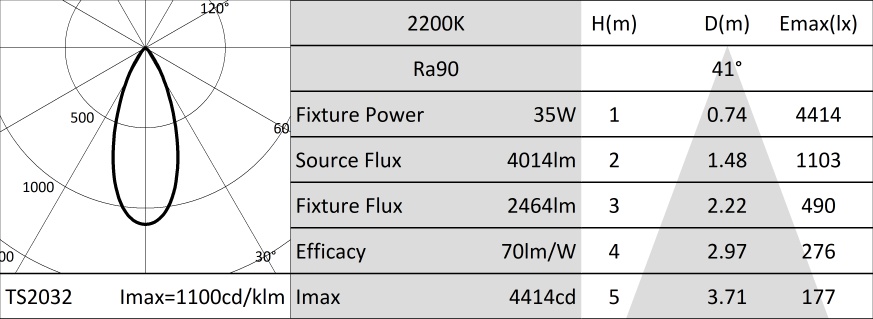

MWFL / 1050mA - 61%
MWFL / 1050mA - 61%
Fixture fluxSP / 1050mA - 2550lm
MWFL / 1050mA - 2464lm
MWFL / 1050mA - 2464lm
Luminous efficacySP / 1050mA - 72lm/W
MWFL / 1050mA - 70lm/W
MWFL / 1050mA - 70lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast aluminium body with 3 layers of protection: anodised, cataphoresis and black paint. The optical unit can be adjusted from -20° a +90° on the vertical plane and 355° on the horizontal plane with the possibility to block the beam. Extra-clear tempered front glass glued flush.
Colour and finishBlack
Weight2.15Kg
Degree of protectionIP66
Mechanical ResistanceIK09
Electrical characteristics
Optional power supply available with ON-OFF, 0-10V dimmable and DALI dimmable 1050mA electronic driver.
Fixture Power35W
Power supply1050mA
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +50°C
Installation
The product can be installed combined with one of the various installation accessories, to be ordered separately. Surface installation on bases, stakes, bollards, trees and poles.
Notes
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Related codes
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A080EL | IP20 | 1050mA | 220-240Vac | 40W MAX | 129x30x42 |
| A081EL | IP67 | 1050mA | 220-240Vac | 52W MAX | 143x31x80 |
Electronic ON-OFF power supply.
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A080DA | IP20 | 1050mA | 220-240Vac | 50W MAX | 124x22x79 |
| A081DA | IP67 | 1050mA | 220-240Vac | 70W MAX | 143x31x80 |
DALI power supply.
Accessories
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A044BT |  |
Bracket for surface installation.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A040BT | |
Round base for surface installation of fixture.
Powder coated aluminium (with a stainless steel fixing bracket).
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A041BT | |
Round base plate.
Powder coated stainless steel.
A041BT - To be completed with A040BT.
A041BT - To be completed with A040BT.
1 / 2
| Code | Colour | H mm | |||
|---|---|---|---|---|---|
| A047BT | | 244 | |||
| A048BT | | 844 |
Spike with base for surface installation.
1 / 2
| Code | Colour | H mm | |||
|---|---|---|---|---|---|
| A050BT | | 208 | |||
| A051BT | | 808 |
Earthspike.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A042BT | |
Hexagonal base with a hole for projector surface installation.
Powder coated die-cast aluminium covering.
Stainless steel fixing base.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A043BT | |
Blind hexagonal base.
Powder coated die-cast aluminium covering.
Stainless steel fixing base.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A052BT | |
Pole attachment for a single projector.
Anodised and powder coated aluminium.
Pole Ø 60mm.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A053BT | |
Pole attachment for two projectors.
Anodised and powder coated aluminium.
Pole Ø 60mm (+/-2mm).
| Code | Colour | H mm | Ø mm | ||
|---|---|---|---|---|---|
| 1E3785BT | | 232 | 50 |
Earthspike.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A049BT | |
Bracket for installation on trees.
To be completed with accessory strap A023.
Powder coated stainless steel.
1 / 2
| Code | L mm | ||||
|---|---|---|---|---|---|
| A023 | 2000 |
Strap for tree bracket (tree installation).
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A045BT | |
Multiple base for surface installation of 2 projectors.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A046BT | |
Multiple base for surface installation of 3 projectors.
Powder coated stainless steel.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A036BT | |
Cylindrical screen.
Powder coated aluminium.
Short version.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A037BT | |
Asymmetric screen.
Powder coated aluminium.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A038BT | |
Cylindrical screen.
Powder coated aluminium.
Long version with prismatic glass.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A039BT | |
Blade of light filter.
Refractive glass filter with blade of light effect.
Completed with powder coated aluminum alloy holder ring.
| Code |
|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
1 / 2
| Code |
|---|
| 1E3048 |
IP67 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 1E4369 |
IP67 Extender for wireless control of LED driver with dimming DALI interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP67 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
