In-ground luminaires
Keplero 280 Adjustable
Code
E013FLL827ELASS
Light colour
2700K
80
80
Light distribution
MWFL
44°
44°
Output
39W
2985lm
2985lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
Ra80 high efficiency High Power LED. 3500K colour temperature available on request.
Energy efficiency classE
Nominal power34W
Nominal flux4230lm
Colour rendering index80
Rf83.1
Rg98.2
CCT nominal2700K
Lifetime (L80/B10)>50000h tq +25°C

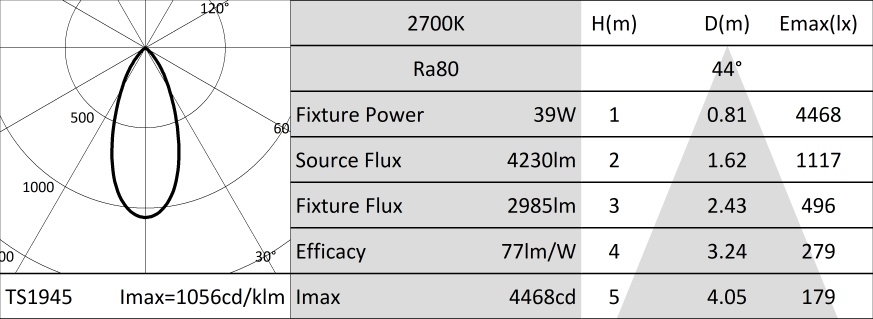

Illuminotechnical characteristics
Optical system with an optical grade PMMA lens and a holographic diffusing filter. Tilting optic adjustable up to 30° on the vertical plane and 210° on the horizontal plane with a friction aim locking system. Designed for the installation of multiple optical accessories to be ordered separately.
OpticLENS
Beam anglesMWFL
Optical efficiency71%
Fixture flux2985lm
Luminous efficacy77lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast aluminium body with 3 layers of protection: anodised, cataphoresis and black paint. Brushed stainless steel (AISI 316) ultra flat decorative ring with bevelled edge (natural finish). Version with anti-slip protective glass for public pedestrian areas. Anti theft stainless steel A4 Torx screws.
Colour and finishBrushed stainless steel
Weight6.1Kg
VersionSTANDARD
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
Integrated IP68 ON-OFF electronic power supply equipped with IP68 waterproof connectors set for connection to the mains with a H07RN8-F (max2x2.5mm²) cable. Fixture with a pass-through line.
Fixture Power39W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
Nylon installation sleeve to be ordered separately as an accessory. The sleeve is pre-set for both flush or straight edge installation. 20kN resistance to static load.
Notes
All light fixtures must be completed with an installation sleeve. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h). All versions of the KEPLERO family meet all the requirements of EN 60598-2-13 standard regarding drive-over and walk-over performances. Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children. Uses the "Waterblock Plus" technical solution that involves resin coating the connection cables and completely resin coating the integrated driver limiting the risk of humidity reaching the fixture. 110-277Vac version available on request.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code |
|---|
| 1E2394 |
Grey nylon installation sleeve.
The sleeve is pre-set for both flush or straight edge installation.
Complete with dedicated cover cap for installations in concrete.
Flush ring Ø 286 H.225.
Straight edge ring Ø 271 H. 223.
Accessories
| Code |
|---|
| A062 |
Anti-glare louver.
Black painted metal honeycomb structure.
The louver is complete with a filter holder ring.
| Code |
|---|
| A063 |
Flat striped glass blade light refractive filter.
This makes the beam take on an oval shape and when combined with spotlights, the light blade appears more prominent.
The accessory is complete with a filter holder ring.
| Code |
|---|
| 1E2496 |
Metal handle for fixture removal
| Code |
|---|
| 1E2495 |
Features TORX HEAD, TX 30.
| Code |
|---|
| 1E0388 |
Sucker tool to raise the glass.
| Code |
|---|
| 1E2769 |
Linear connection box IP66/IP68.
5 poles max. wire section 1.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
1 / 2
| Code |
|---|
| A013B |
Surge protector compatible with CLASS II lighting fixtures and electronic drivers.
Operating voltage 220-240Vac.
SPD type 2+3.
Max surge protection 10kV.
CLASS II
IP67
