Keplero Quantum 130 Fixed
Code
E025WWL922CSS
Light colour
2200K
90
90
Light distribution
Wall Washer
Output
13.2W
825lm
825lm
Power supply
Control
Control
24Vdc
Colour
1 / 3
Technical Data
Concept
Recessed professional projector with a fixed optical unit.
Source
High efficiency Chip on Board LED. 2200K (Ra90) colour temperature.
Energy efficiency classE
Nominal power12W
Nominal flux1416lm
Colour rendering index90
Rf91
Rg101
CCT nominal2200K
Lifetime (L80/B10)56000h tq +25°C
Lifetime (L90/B10)56000h tq +25°C

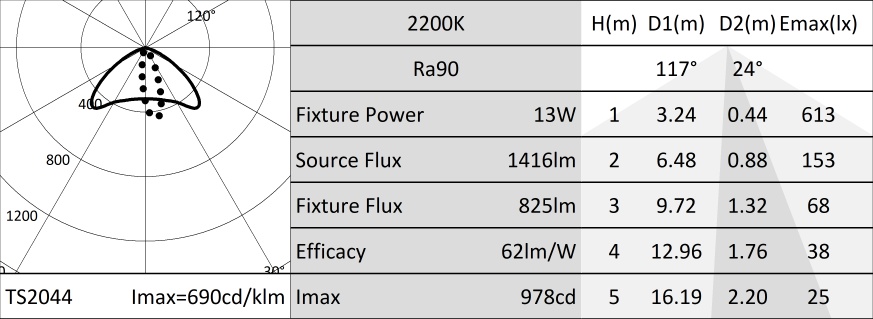

Illuminotechnical characteristics
Optical grade PMMA lens, holographic diffusing filter and half-moon black shutter.
OpticWall Washer
Beam anglesWW
Optical efficiency58.26%
Fixture flux825lm
Luminous efficacy62lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast aluminium body with 2 layers of protection: cataphoresis and black paint. Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a natural finish. Extra clear protective glass.
Colour and finishBrushed stainless steel
DimensionsØxH 130x94mm
Weight1Kg
VersionExtra-clear glass
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
24Vdc power supply. ON-OFF or DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power13.2W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +50°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeves are available for flush or trim installation. 20kN resistance to static load. Wall/ceiling installation by the accessory mounting systems.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 130 versions meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture.
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Non-replaceable control gear.
