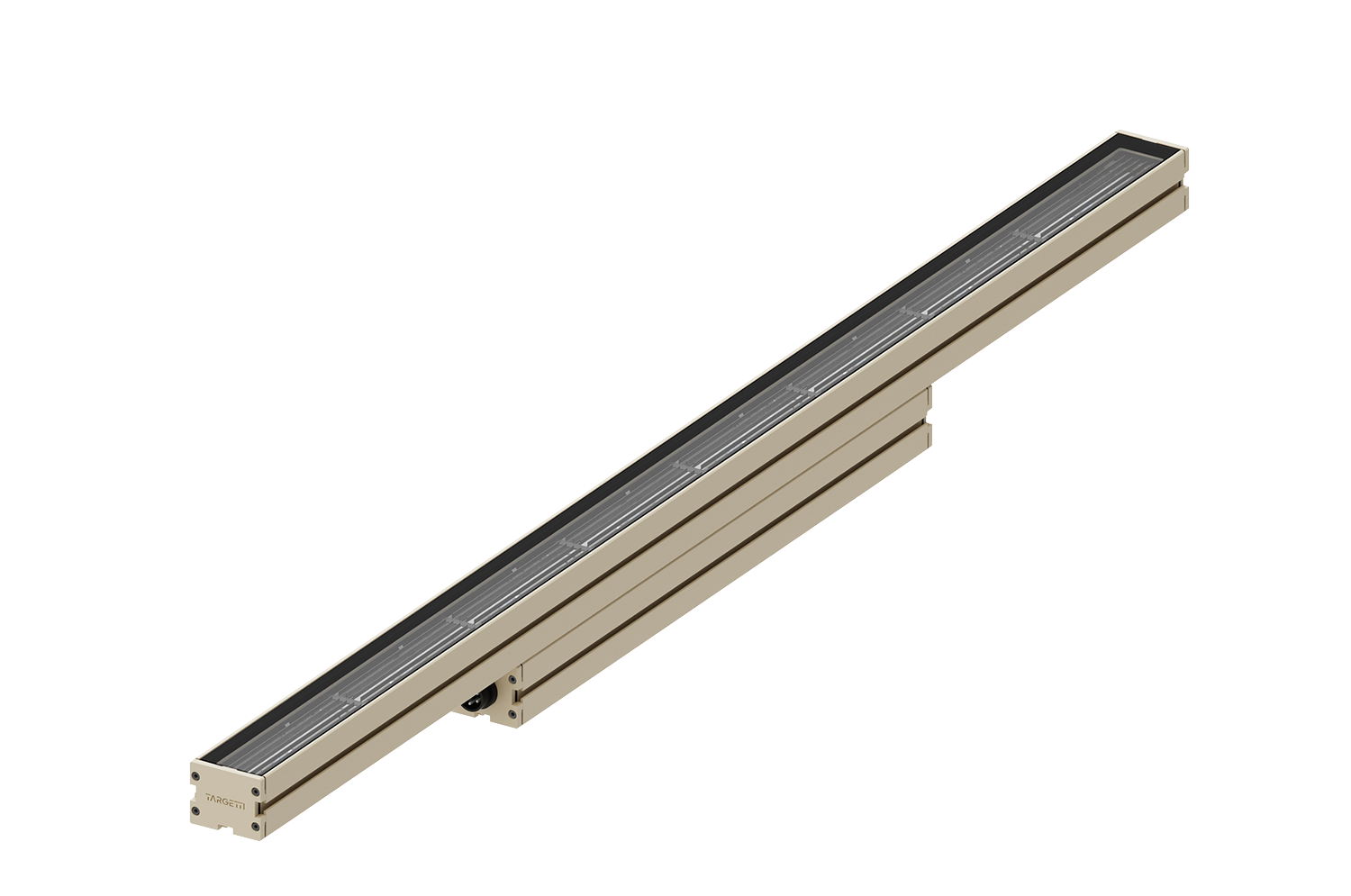

Jedi Nova 55 Projector
Comfort 600
Code
E0532GRH822ELFW
Light colour
2200K
80
80
Light distribution
Grazing
17° / 74°
17° / 74°
Output
22.9W
1854lm
1854lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
Mid Power High Efficiency Ra80 linear LED board.
Energy efficiency classD
Nominal power20.6
Nominal flux3100lm
Colour rendering index80
CCT nominal2200K
Lifetime (L80/B10)>102000h tq +25°C

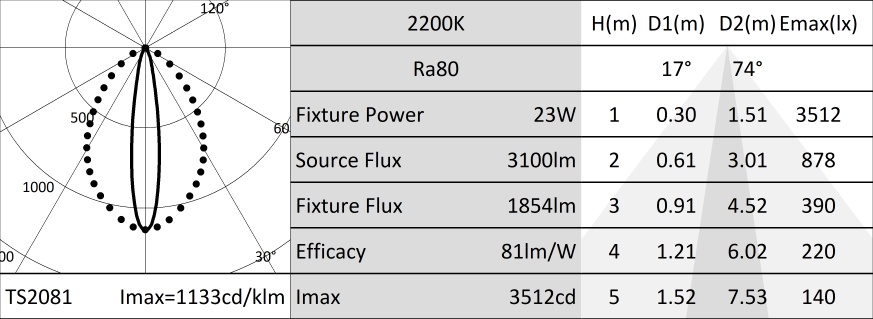

Illuminotechnical characteristics
Internal optical system made of a primary cylindrical lens in PMMA, a high reflectance anodised aluminium reflector and a holographic filter. Comfort version with integrated optical accessory: longitudinal anti-glare screen in black painted steel.
OpticHYBRID
Beam anglesGRZ 20°x75°
Optical efficiency60%
Fixture flux1854lm
Luminous efficacy81lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 5mm thick glass flat screen. The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.
Colour and finishFlorentine white
DimensionsL=588mm
Weight3.2Kg
VersionComfort
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK07
Electrical characteristics
Integrated driver, available in the ON-OFF version (positioned below the optical body). Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body). Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power23W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +35°C
Installation
To be completed with powder coated stainless steel fixed or adjustable brackets (available in different lengths).
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A108BT |  |
Fixed bracket kit in powder-coatedstainless steel for surface installation (2 pieces).
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A109FW |  | Short | 57 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A110FW | | Medium | 157 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A111ZFW | | Long | 303 | ||
| A111YFW | | Long | 453 | ||
| A111XFW | | Long | 603 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | H mm | |||
|---|---|---|---|---|---|
| A112 | | 181 |
Earthspike.
Powder coated stainless steel.
To be used with A108, A109, A110.
Accessories
| Code |
|---|
| A117 |
IP66/IP68 female connector.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A118 |
Male/female IP66/IP68 connector kit.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A119 |
Multiple connection box IP68.
1 IN - 2 OUT 5 poles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code | L mm | ||||
|---|---|---|---|---|---|
| A120Z | 1000 | ||||
| A120Y | 2000 | ||||
| A120X | 3000 |
Connection cable.
Complete with 5 pole connectors.
For the ON-OFF and DALI version.
