Projectors
Jedi Nova 55 Projector
Comfort 600
Code
E0532GWL840ELBA
Light colour
4000K
80
80
Light distribution
Grazing
11° / 59°
11° / 59°
Output
35W
3033lm
3033lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High Power High Efficiency Ra80 linear LED board.
Nominal power31.5
Nominal flux4798lm
Colour rendering index80
CCT nominal4000K

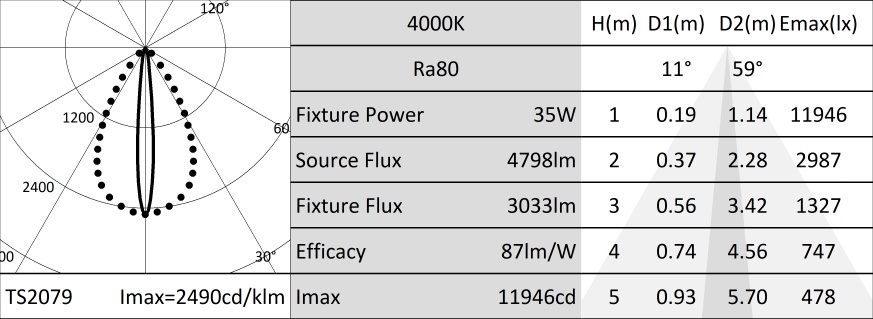

Illuminotechnical characteristics
Optic made of optical grade PMMA TIR lenses and a holographic filter. Comfort version with integrated optical accessory: longitudinal anti-glare screen in black painted steel.
OpticLENS
Beam anglesGRZ 10°x60°
Optical efficiency63%
Fixture flux3033lm
Luminous efficacy87lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 5mm thick glass flat screen. The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.
Colour and finishBlack anodized
DimensionsL=588mm
Weight3.2Kg
VersionComfort
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK07
Electrical characteristics
Integrated driver, available in the ON-OFF version (positioned below the optical body). Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body). Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power35W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +35°C
Installation
To be completed with powder coated stainless steel fixed or adjustable brackets (available in different lengths).
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A108BT |  |
Fixed bracket kit in powder-coatedstainless steel for surface installation (2 pieces).
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A109BT | | Short | 57 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A110BT | | Medium | 157 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A111ZBT | | Long | 303 | ||
| A111YBT | | Long | 453 | ||
| A111XBT | | Long | 603 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | H mm | |||
|---|---|---|---|---|---|
| A112 | | 181 |
Earthspike.
Powder coated stainless steel.
To be used with A108, A109, A110.
Accessories
| Code |
|---|
| A117 |
IP66/IP68 female connector.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A118 |
Male/female IP66/IP68 connector kit.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A119 |
Multiple connection box IP68.
1 IN - 2 OUT 5 poles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code | L mm | ||||
|---|---|---|---|---|---|
| A120Z | 1000 | ||||
| A120Y | 2000 | ||||
| A120X | 3000 |
Connection cable.
Complete with 5 pole connectors.
For the ON-OFF and DALI version.
