Projectors
Jedi Nova 55 Projector Side Box 900
Code
E0543GWL822ELBC
Light colour
2200K
80
80

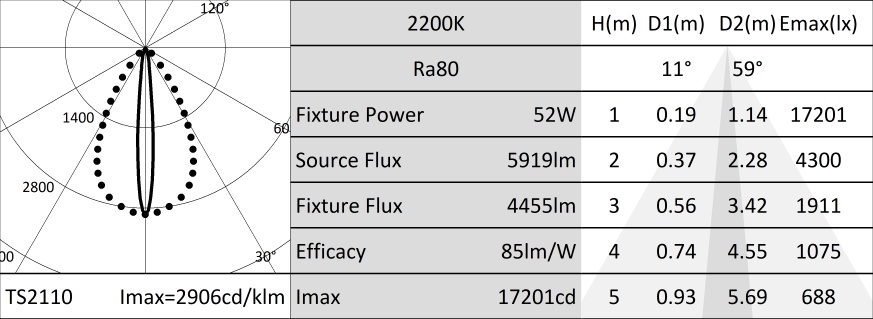

Light distribution
Grazing
11° / 59°
11° / 59°
Output
52.4W
4455lm
4455lm
Power supply
Control
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
Adjustable linear LED projector.
Source
High Power High Efficiency Ra80 linear LED board.
Energy efficiency class
Nominal power47.2
Nominal flux5919lm
Colour rendering index80
CCT nominal2200K
Lifetime (L80/B10)100000h tq +25°C
Lifetime (L90/B10)96000h tq +25°C
Illuminotechnical characteristics
Optic made of optical grade PMMA TIR lenses and a holographic filter.
OpticGrazing
Beam anglesGRZ 10°x60°
Optical efficiency75.26%
Fixture flux4455lm
Luminous efficacy85lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 5mm thick glass flat screen. The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.
Colour and finishBurnished copper
DimensionsAxBxH 868x110x45mm
Weight4.4Kg
VersionStandard
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK07
Electrical characteristics
Integrated driver available in the ON-OFF version (positioned laterally to the optical body). Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body).
Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power52.4W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF - PUSH
Driver includedYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
To be completed with powder coated stainless steel fixed or adjustable brackets (available in different lengths).
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
Related codes
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A108BT |  |
Fixed bracket kit in powder-coatedstainless steel for surface installation (2 pieces).
1 / 2
| Code | Colour | Version | L | ||
|---|---|---|---|---|---|
| A109BC | | Short | 57mm |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L | ||
|---|---|---|---|---|---|
| A110BC | | Medium | 157mm |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L | ||
|---|---|---|---|---|---|
| A111ZBC | | Long | 303mm | ||
| A111YBC | | Long | 453mm | ||
| A111XBC | | Long | 603mm |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | H | |||
|---|---|---|---|---|---|
| A112 | | 181mm |
Earthspike.
Powder coated stainless steel.
To be used with A108, A109, A110.
Accessories
| Code | |||||
|---|---|---|---|---|---|
| A117 |
IP66/IP68 female connector.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code | |||||
|---|---|---|---|---|---|
| A118 |
Male/female IP66/IP68 connector kit.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code | L | ||||
|---|---|---|---|---|---|
| A120Z | 1000mm | ||||
| A120Y | 2000mm | ||||
| A120X | 3000mm |
Connection cable.
Complete with 5 pole connectors.
For the ON-OFF and DALI version.
1 / 2
| Code | Colour | L | |||
|---|---|---|---|---|---|
| A146Y | | 865mm |
Griglia antiabbagliamento simmetrica in alluminio verniciato nero.
Installazione esterna al prodotto.
1 / 2
| Code | Colour | L | |||
|---|---|---|---|---|---|
| A147Y | | 865mm |
Griglia antiabbagliamento asimmetrica in alluminio verniciato nero.
Installazione esterna al prodotto.
| Code | Colour | L | |||
|---|---|---|---|---|---|
| A148YBC | | 868mm |
Paraluce estetico e antiabbagliamento in alluminio verniciato.
Versione per proiettore standard e side box.
