Jedi Nova 55 Projector Side Box
1200
Code
E0544FFL830D2FW
Light colour
3000K
80
80

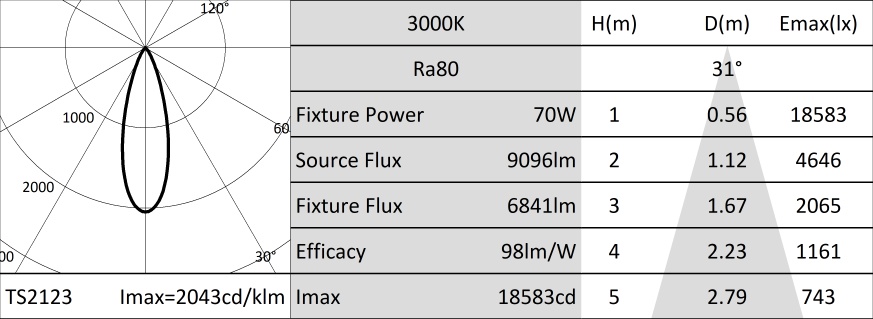

Light distribution
FL
31°
31°
Output
70W
6841lm
6841lm
Power supply
Control
220-240Vac
DALI2
DALI2
Colour
1 / 3
Technical Data
Source
High Power High Efficiency Ra80 linear LED board.
Nominal power63
Nominal flux9096lm
Colour rendering index80
CCT nominal3000K
Lifetime (L80/B10)>102000h tq +25°C
Illuminotechnical characteristics
Optic made of optical grade PMMA TIR lenses and a holographic filter.
OpticLENS
Beam anglesFL 30°
Optical efficiency75%
Fixture flux6841lm
Luminous efficacy98lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 5mm thick glass flat screen. The body of the fixture is adjustable and can be installed away from the mounting surface using accessory snap brackets.
Colour and finishFlorentine white
DimensionsL=1148mm
Weight4.7Kg
VersionSTANDARD
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK07
Electrical characteristics
Integrated driver available in the DALI2 version (positioned laterally to the optical body). Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body). Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power70W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI2 - PUSH
Driver includedYES
Class FYES
Ambient temperature0°C / +35°C
Installation
To be completed with powder coated stainless steel fixed or adjustable brackets (available in different lengths).
Notes
Casambi control system available using a dedicated accessory. 110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A108BT |  |
Fixed bracket kit in powder-coatedstainless steel for surface installation (2 pieces).
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A109FW |  | Short | 57 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A110FW | | Medium | 157 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | Version | L mm | ||
|---|---|---|---|---|---|
| A111ZFW | | Long | 303 | ||
| A111YFW | | Long | 453 | ||
| A111XFW | | Long | 603 |
Adjustable bracket kit in powder-coated stainless steel for surface installation (2 pieces).
Rotation +/-90°.
1 / 2
| Code | Colour | H mm | |||
|---|---|---|---|---|---|
| A112 | | 181 |
Earthspike.
Powder coated stainless steel.
To be used with A108, A109, A110.
Accessories
| Code |
|---|
| A117 |
IP66/IP68 female connector.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A118 |
Male/female IP66/IP68 connector kit.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code | L mm | ||||
|---|---|---|---|---|---|
| A120Z | 1000 | ||||
| A120Y | 2000 | ||||
| A120X | 3000 |
Connection cable.
Complete with 5 pole connectors.
For the ON-OFF and DALI version.
