In-ground luminaires

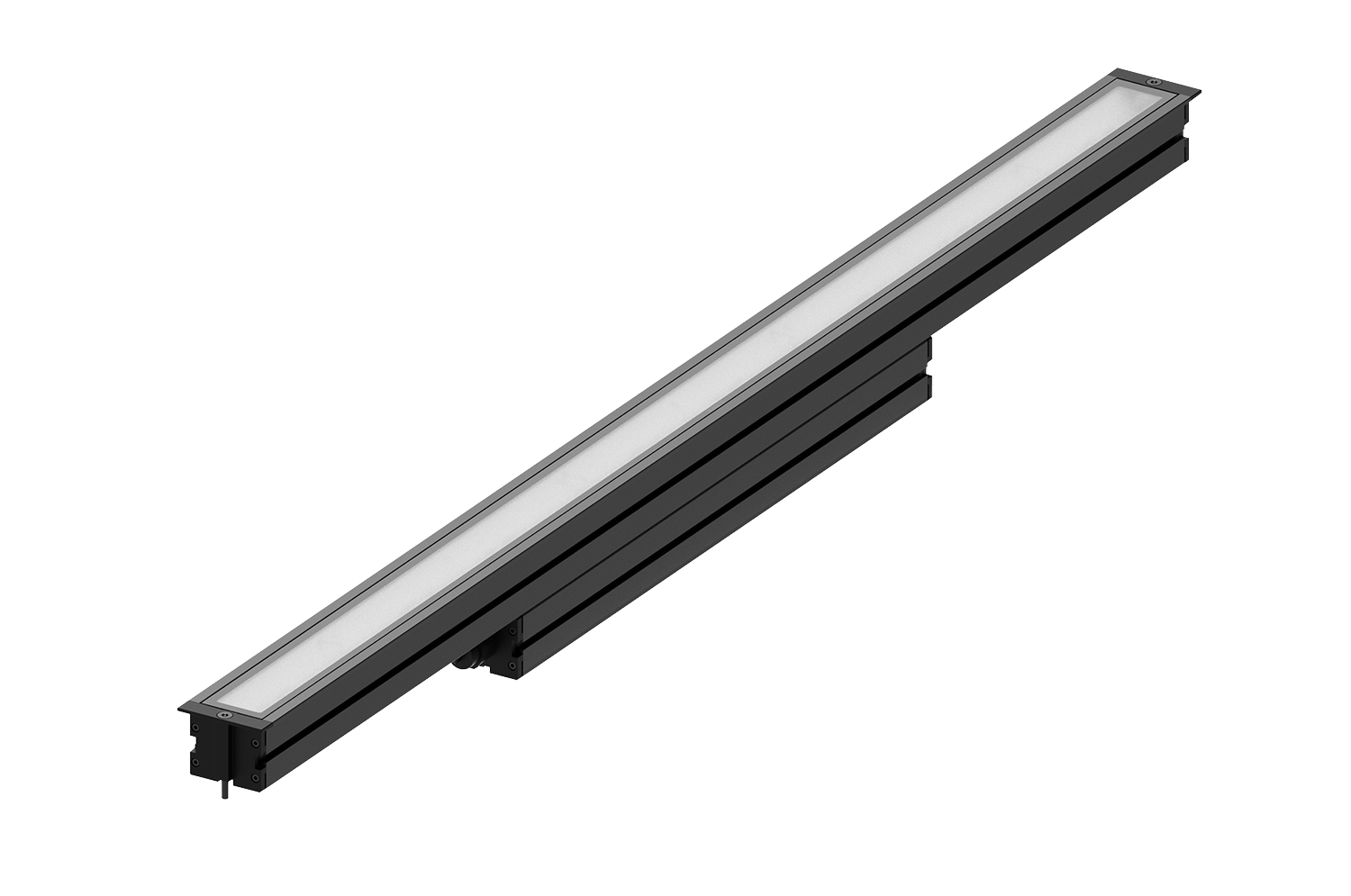

Jedi Nova 55 Recessed 900
Code
E0563OPL827ELBA
Light colour
2700K
80
80
Light distribution
Opal
Output
16W
1381lm
1381lm
Power supply
Control
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
Recessed linear LED projector.
Source
Mid Power High Efficiency Ra80 linear LED board.
Energy efficiency classC
Nominal power14.4
Nominal flux2715lm
Colour rendering index80
CCT nominal2700K
Lifetime (L80/B10)100000h tq +25°C
Lifetime (L90/B10)59000h tq +25°C

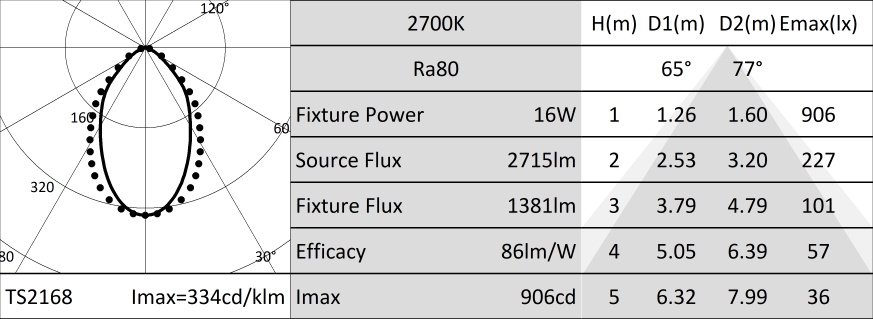

Illuminotechnical characteristics
Internal optical system made of a reflector in white painted aluminium and a opal diffusive filter.
OpticOpal
Beam anglesOP
Optical efficiency50.88%
Fixture flux1381lm
Luminous efficacy86lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 10mm thick glass flat screen.
Colour and finishBlack anodized
DimensionsAxBxH 882x65x95mm
Weight5Kg
VersionStandard
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
Integrated driver, available in the ON-OFF version (positioned below the optical body). Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body).
Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power16W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF - PUSH
Driver includedYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
To be completed with an anodised aluminium insertion box. Continuous in-line installation version available.
Notes
110-277Vac version available on request. All versions meet the drive-over and walk-over requirements of EN 60598-2-13. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). IP69: IEC/EN 60529 standard compliant.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
