In-ground luminaires
Jedi Nova 55 Recessed
900
Code
E0563WWH840ELBA
Light colour
4000K
80
80
Light distribution
Wall Washer
Output
34.3W
4396lm
4396lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
Mid Power High Efficiency Ra80 linear LED board.
Energy efficiency classB
Nominal power30.9
Nominal flux5754lm
Colour rendering index80
CCT nominal4000K

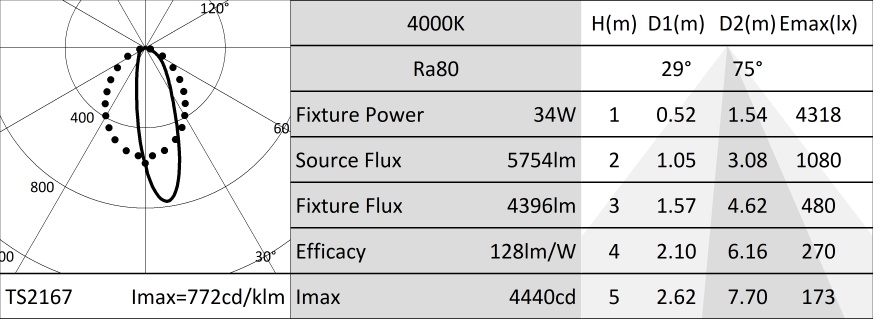

Illuminotechnical characteristics
Internal optical system made of a primary cylindrical lens in PMMA, a high reflectance anodised aluminium reflector and a holographic filter.
OpticHYBRID
Beam anglesWW
Optical efficiency76%
Fixture flux4396lm
Luminous efficacy128lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 10mm thick glass flat screen.
Colour and finishBlack anodized
DimensionsL=882mm
Weight5Kg
VersionSTANDARD
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK10
Electrical characteristics
Integrated driver, available in the ON-OFF version (positioned below the optical body). Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body). Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power34W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +35°C
Installation
To be completed with an anodised aluminium insertion box. Continuous in-line installation version available.
Notes
110-277Vac version available on request. All versions meet the drive-over and walk-over requirements of EN 60598-2-13. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). IP69: IEC/EN 60529 standard compliant.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
1 / 2
| Code | Version | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A113Y | Stand Alone | 100 | 108 | 906 |
Aluminium outer casing for Jedi Nova 55.
In black anodised aluminum.
1 / 2
| Code | Version | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A114Y | System | 100 | 108 | 904 |
Aluminium outer casing for Jedi Nova 55.
In black anodised aluminum.
1 / 2
| Code |
|---|
| A116 |
Fixing plate kit for A113 and A114 installation sleeves.
In aluminum.
Accessories
| Code |
|---|
| A117 |
IP66/IP68 female connector.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A118 |
Male/female IP66/IP68 connector kit.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A119 |
Multiple connection box IP68.
1 IN - 2 OUT 5 poles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code | L mm | ||||
|---|---|---|---|---|---|
| A120Z | 1000 | ||||
| A120Y | 2000 | ||||
| A120X | 3000 |
Connection cable.
Complete with 5 pole connectors.
For the ON-OFF and DALI version.
