In-ground luminaires
Jedi Nova 55 Recessed
Comfort 1200
Code
E0574GSL830ELBA
Light colour
3000K
80
80
Light distribution
Grazing
11° / 11°
11° / 11°
Output
70W
5467lm
5467lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High Power High Efficiency Ra80 linear LED board.
Nominal power63
Nominal flux9096lm
Colour rendering index80
CCT nominal3000K
Illuminotechnical characteristics
Optic made of optical grade PMMA TIR lenses and a holographic filter. Comfort version with integrated optical accessory: aluminum honeycomb grid, matte black finish.
OpticLENS

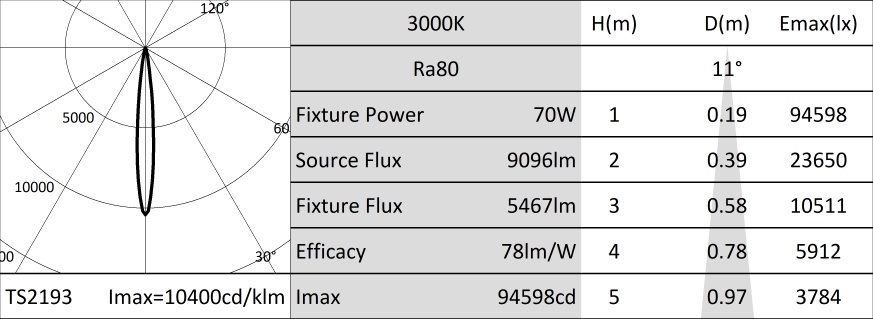

Beam anglesGRZ 10°x10°
Optical efficiency60%
Fixture flux5467lm
Luminous efficacy78lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodised aluminium 15µ body. Extra clear 10mm thick glass flat screen.
Colour and finishBlack anodized
DimensionsL=1162mm
Weight5.6Kg
VersionComfort
Degree of protectionIP66,IP67,IP68,IP69
Mechanical ResistanceIK10
Electrical characteristics
Integrated driver, available in the ON-OFF version (positioned below the optical body). Supplied with through-wiring withlongitudinal sealing IN/OUT panel connectors (the sealing limits the risk of humidity raising towards the driver/optical body). Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power70W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +35°C
Installation
To be completed with an anodised aluminium insertion box. Continuous in-line installation version available.
Notes
110-277Vac version available on request. All versions meet the drive-over and walk-over requirements of EN 60598-2-13. IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). IP69: IEC/EN 60529 standard compliant.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
1 / 2
| Code | Version | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A113X | Stand Alone | 100 | 108 | 1206 |
Aluminium outer casing for Jedi Nova 55.
In black anodised aluminum.
1 / 2
| Code | Version | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A114X | System | 100 | 108 | 1204 |
Aluminium outer casing for Jedi Nova 55.
In black anodised aluminum.
1 / 2
| Code |
|---|
| A116 |
Fixing plate kit for A113 and A114 installation sleeves.
In aluminum.
Accessories
| Code |
|---|
| A117 |
IP66/IP68 female connector.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A118 |
Male/female IP66/IP68 connector kit.
5 pôles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code |
|---|
| A119 |
Multiple connection box IP68.
1 IN - 2 OUT 5 poles (STANDARD 3G2,5mm² MAX, DALI 5G1,5mm² MAX).
Cable diameter range from 7 to 12mm.
| Code | L mm | ||||
|---|---|---|---|---|---|
| A120Z | 1000 | ||||
| A120Y | 2000 | ||||
| A120X | 3000 |
Connection cable.
Complete with 5 pole connectors.
For the ON-OFF and DALI version.
Downloads
