Keplero Quantum 130 Fixed
Code
E062WFL830AEB
Light colour
3000K
80
80
Light distribution
MWFL
48°
48°
Output
13.8W
1087lm
1087lm
Power supply
Control
Control
700mA
Colour
1 / 3
Technical Data
Concept
Recessed professional projector with a fixed optical unit.
Source
High efficiency Chip on Board LED. 3000K (Ra80) colour temperature.
Energy efficiency classC
Nominal power12W
Nominal flux1974lm
Colour rendering index80
Rf84
Rg97
CCT nominal3000K
Lifetime (L80/B10)56000h tq +25°C
Lifetime (L90/B10)56000h tq +25°C

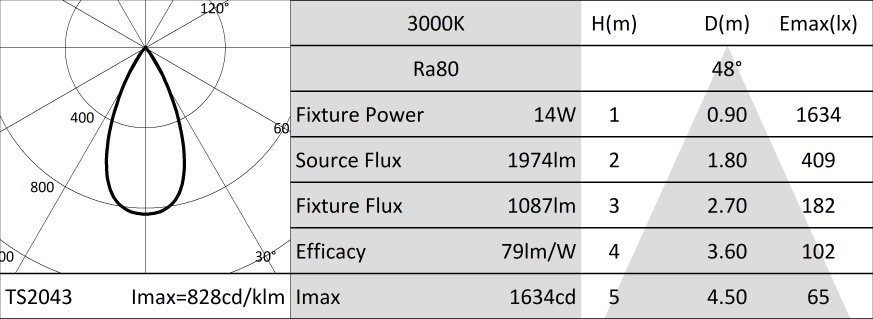

Illuminotechnical characteristics
Optical grade PMMA lens and holographic diffusing filter.
OpticMWFL
Beam anglesMWFL
Optical efficiency55.06%
Fixture flux1087lm
Luminous efficacy79lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast aluminium body with 2 layers of protection: cataphoresis and black paint. Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a eclipse black finish. Anti-slip glass for public pedestrian areas.
Colour and finishEclipse black
DimensionsØxH 130x94mm
Weight1Kg
VersionAnti-slip glass
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
Constant current power supply. ON-OFF or DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power13.8W
Power supply700mA
Insulation ClassCLASS 3
Driver includedNO
Ambient temperature-25°C / +50°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeves are available for flush or trim installation. 20kN resistance to static load. Wall/ceiling installation by the accessory mounting systems.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 130 versions meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture.
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Non-replaceable control gear.
Related codes
1 / 2
| Code | P | H | L | ||
|---|---|---|---|---|---|
| A121 | 317mm | 125mm | 317mm |
Reinforced nylon installation sleeve.
The sleeve is designed for the trim installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 317x317 H. 125
1 / 2
| Code | Colour | P | H | L | |
|---|---|---|---|---|---|
| A122EB | | 317mm | 127mm | 317mm |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 317x317 H. 127
| Code | |||||
|---|---|---|---|---|---|
| A123 |
Steel spring kit for wall and ceiling installations.
| Code | IP | Output current | Power supply | Power | LxHxP |
|---|---|---|---|---|---|
| A140EL | IP67 | 700mA | 220-240Vac | 25W MAX | 114x32x44mm |
Electronic ON-OFF power supply.
| Code | IP | Output current | Power supply | Power | LxHxP |
|---|---|---|---|---|---|
| A140D2 | IP67 | 700mA | 220-240Vac | 25W MAX | 114x32x44mm |
DALI2 power supply.
Accessories
| Code | |||||
|---|---|---|---|---|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code | |||||
|---|---|---|---|---|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code | |||||
|---|---|---|---|---|---|
| 1E3305 |
Tightening wrench for the connector kit.
