In-ground luminaires
Keplero Quantum 130
Adjustable
Code
E065FLL840ASS
Light colour
4000K
80
80
Light distribution
FL
33°
33°
Output
13.8W
1357lm
1357lm
Power supply
Control
700mA
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED. 4000K (Ra80) colour temperature.
Energy efficiency classB
Nominal power12W
Nominal flux2053lm
Colour rendering index80
Rf81
Rg97
CCT nominal4000K

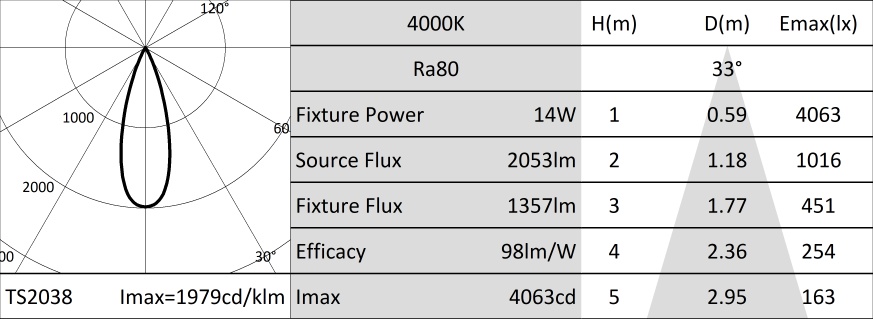

Illuminotechnical characteristics
Optical grade PMMA lens and holographic diffusing filter. Adjustability of the optical unit up to 20° on the vertical plane. Tilting of the optical unit made through external regulation without opening the product.
OpticLENS
Beam anglesFL
Optical efficiency66%
Fixture flux1357lm
Luminous efficacy98lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast aluminium body with 2 layers of protection: cataphoresis and black paint. Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a natural finish. Anti-slip glass for public pedestrian areas.
Colour and finishBrushed stainless steel
VersionANTI-SLIP GLASS
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
Constant current power supply. ON-OFF or DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power14W
Power supply700mA
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeves are available for flush or trim installation. 20kN resistance to static load. Wall/ceiling installation by the accessory mounting systems.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 130 versions meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Non-replaceable control gear.
Related codes
1 / 2
| Code | P mm | H mm | L mm | ||
|---|---|---|---|---|---|
| A121 | 317 | 125 | 317 |
Reinforced nylon installation sleeve.
The sleeve is designed for the trim installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 317x317 H. 125
1 / 2
| Code | Colour | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A122SS |  | 317 | 127 | 317 |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 317x317 H. 127
| Code |
|---|
| A123 |
Steel spring kit for wall and ceiling installations.
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A140EL | IP67 | 700mA | 220-240Vac | 25W MAX | 114x32x44 |
Electronic ON-OFF power supply.
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A140D2 | IP67 | 700mA | 220-240Vac | 25W MAX | 114x32x44 |
DALI2 power supply.
Accessories
| Code |
|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
