Jedi Nova
In-ground luminaires
A new star is born
NEW
Jedi Nova is the family of surface-mounted and recessed linear projectors, ideal for architectural lighting. In continuity with the Jedi and Jedi Compact ranges, it offers outstanding reliability and distinctive quality, while introducing significant innovations in technology and performance.
All versions are distinguished by outstanding performance and an extensive range of lighting effects, designed to meet the most demanding project requirements.
The collection includes two surface-mounted projector options and one recessed solution, each available in three different lengths to offer maximum design freedom and configuration versatility.
Available sizes
600mm
900mm
1200mm
900mm
1200mm
Colour temperatures
2700K
3000K
3500K
4000KFinishes
Stainless Steel
Copper Bronze
Florentine White
Control systems
Casambi
On-Off
Digital DimmingDrive-over capacity
Walk-over
Drive-overDegree of protection
Operating temperature
Installation
Ceiling
Ceiling
Wall
To adapt to any space and project
Jedi Nova surface projectors are available in two distinct housing configurations, carefully engineered to meet diverse design and installation requirements. Alongside the classic compact version with rear driver box, a solution with integrated side driver box is also available, offering greater flexibility in architectural applications.
The range is completed by in-ground recessed versions, ensuring design continuity across different installation needs.
The range is completed by in-ground recessed versions, ensuring design continuity across different installation needs.
Lenghts
600mm, 900mm, 1200mm

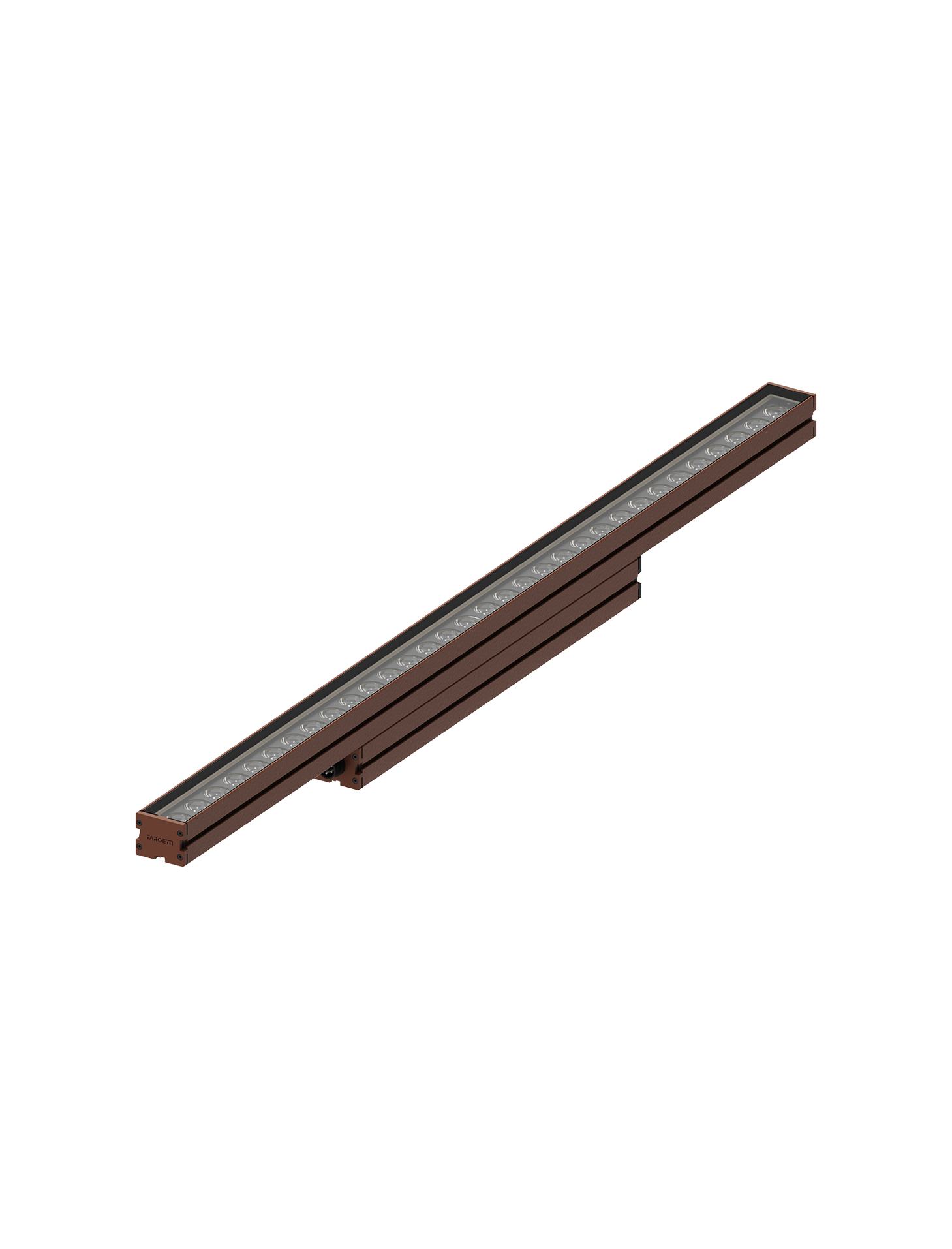

Projector
Lenghts
600mm, 900mm, 1200mm
Projector - Side Box
Lenghts
600mm, 900mm, 1200mm

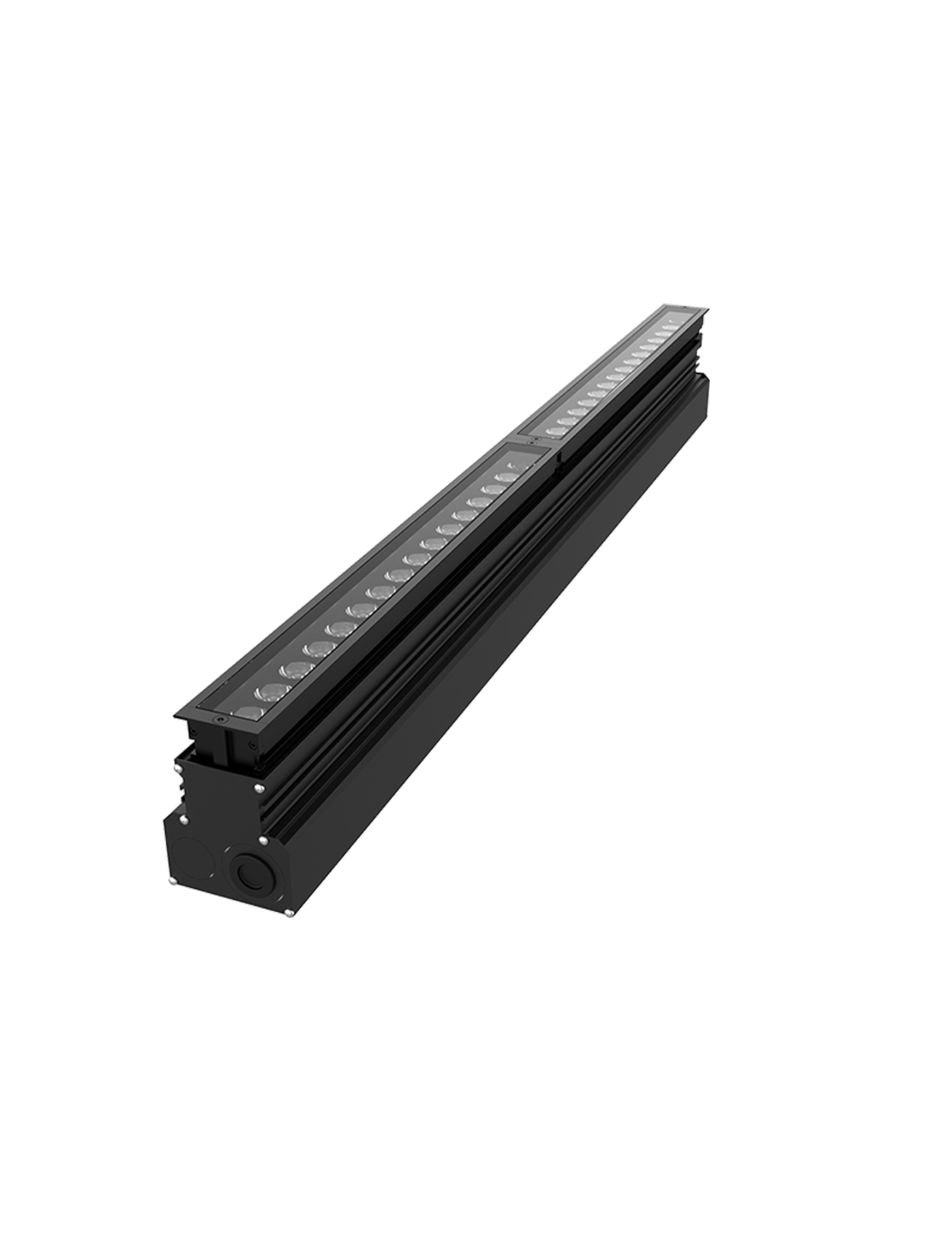

Recessed in-ground
Prepared for Every Scenario
In the surface-mounted projector versions, Jedi Nova 55 is offered in three sophisticated finishes designed to integrate seamlessly into any architectural context:
Anodized Black, Burnished Copper, and the exclusive Florentine White finish, ideal for enhancing and respecting the character of historic buiding façades.
The recessed versions are available exclusively in the refined Black Anodized finish, ensuring a clean and elegant visual presence.
Anodized Black, Burnished Copper, and the exclusive Florentine White finish, ideal for enhancing and respecting the character of historic buiding façades.
The recessed versions are available exclusively in the refined Black Anodized finish, ensuring a clean and elegant visual presence.
Extremely Durable
The recessed Jedi Nova versions are exceptionally robust and suitable for installation even in areas subject to vehicle traffic. They feature a high impact protection rating (IK10) and comply with EN 60598-2-13, with resistance to static loads of up to 2000 kg.
Precise, controlled, and diversified lighting effects
Jedi Nova integrates differentiated optical systems, specifically developed for various application types. The availability of numerous light distributions ensures high design flexibility, effectively meeting even the most complex project requirements.
1 / 3
1 / 3
1 / 1
1 / 1
Wall Grazing
Ideal for grazing lighting and enhancing the texture of any surface. Jedi Nova offers five different Wall Grazing light distributions, with precise and differentiated geometries.
- 10°x10° Lens Optic
- 10°x40° Lens Optic
- 10°x60° Lens Optic
- 10°x120° Lens Optic
- 20°x75° Linear Hybrid
Wall Grazing
Flood
Flood versions are available in three different distributions, delivering a soft lighting effect with wide yet controlled emission. The perfect solution for projected illumination of specific elements.
- 30°x30° Lens Optic
- 60°x60° Cellular Optic
- 75°x75° Cellular Optic
Flood
Wall Washer
The hybrid Wall Washer optical system provides uniform and homogeneous lighting for large vertical and horizontal surfaces.
- 20°x75° Linear Hybrid - asymmetric
Wall Washer
Opal
The Opal optical system delivers soft and wide illumination. The diffusing screen completely conceals the light source from view.
- 120° Opal screen
Opal
Visual Comfort
For maximum glare control, Wall Grazing, Flood, and Wall Washer distributions are available with either a linear louver or an integrated honeycomb system.
In addition, special optical accessories, which can be installed directly on the luminaire, provide further control of the light emission and glare.
In addition, special optical accessories, which can be installed directly on the luminaire, provide further control of the light emission and glare.
Light becomes emotion, identity, and experience
Vibrant color meets pure white to shape atmosphere, enhance architecture, and bring outdoor spaces to life. From subtle accents to immersive scenes, Jedi Nova RGBW versions transforms every spaces into unique experiences.
Quick and effortless installation
Both in the projector and recessed versions, Jedi Nova ensures a fast and straightforward setup. Integrated IP68 Plug&Light connectors streamline assembly and enable through-wiring, perfect for installing multiple units in continuous line.
Installation Flexibility
Compact dimensions and a wide range of accessories make Jedi Nova ideal even for narrow recesses. From fixed and adjustable brackets to newly designed ground spikes for direct soil mounting, every installation is simple, precise, and versatile.
Flexible mounting
The installation accessories for the projectors can be freely positioned within the dedicated luminaire grooves. They can be slid along the profile to achieve the optimal configuration according to project requirements.
All installation accessories are available in the three finishes provided for the projectors.
All installation accessories are available in the three finishes provided for the projectors.
