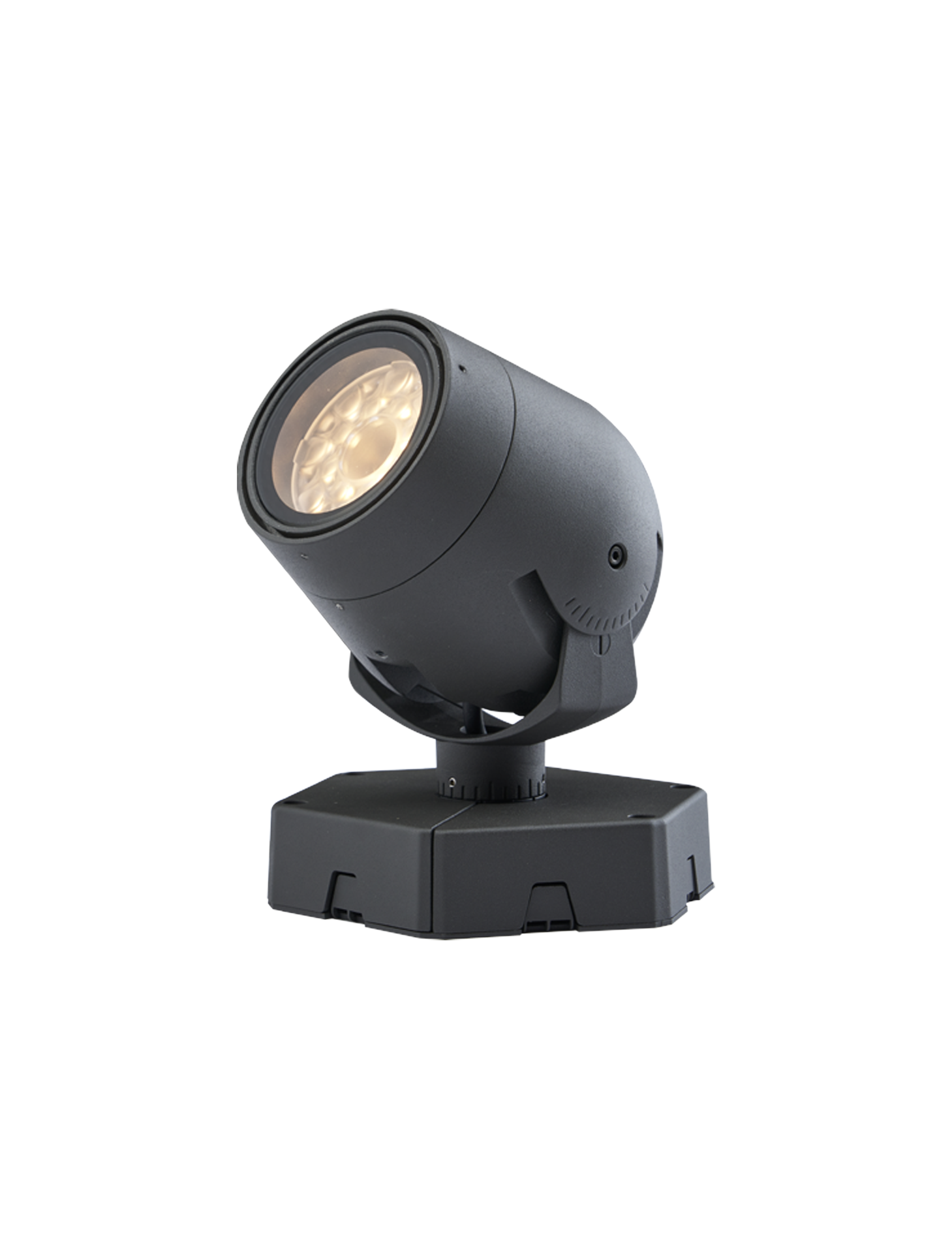

Vader
Projectors
All-in-one projector
The designer's voice
Vader provides unmatched ease of use and versatility: just one fixture to meet the needs of projects of any type and scale.
Charles Stone
FMS - Fisher Marantz Stone
One projector, endless possibilities

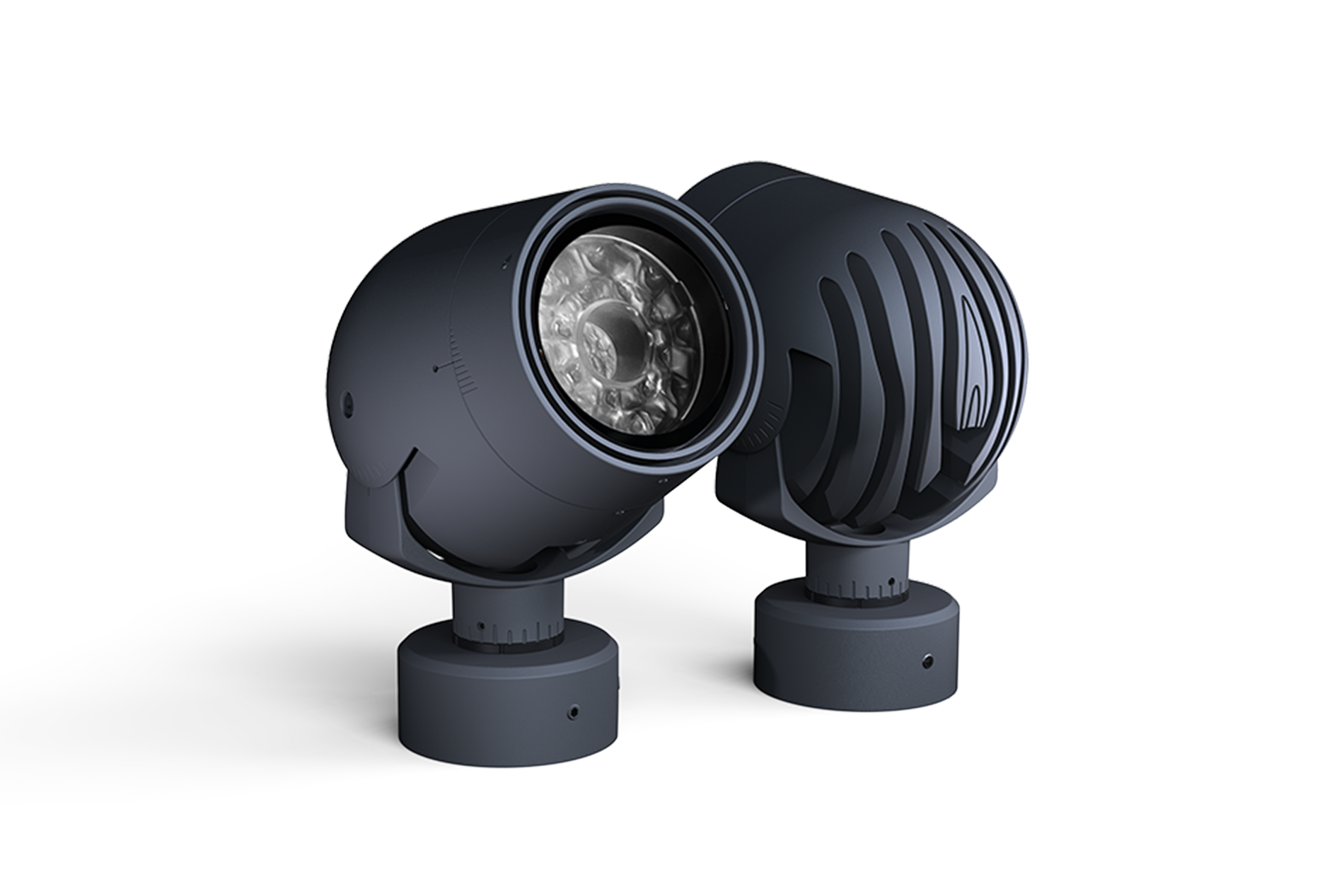

Developed in collaboration with the international lighting design firm FMS, Vader is the outdoor projector that provides the flexibility of a whole range of lighting fixtures in just one product.
Two versions
Vader is available in a One version with Tunable White light sources, and in a monochrome, high performance Solo version, to meet different architectural lighting needs.
Tunable White
1800K - 4000K
ZOOM optical system
from SP to MWFL
Control
DALI
0-10V/1-10V
DMX
0-10V/1-10V
DMX
Vader One
Colour temperature
2200K
2700K
3000K
4000K
2700K
3000K
4000K
High perfomances
Real emission up to 3696lm
Operating temperature
From -25° to +50°
Vader Solo

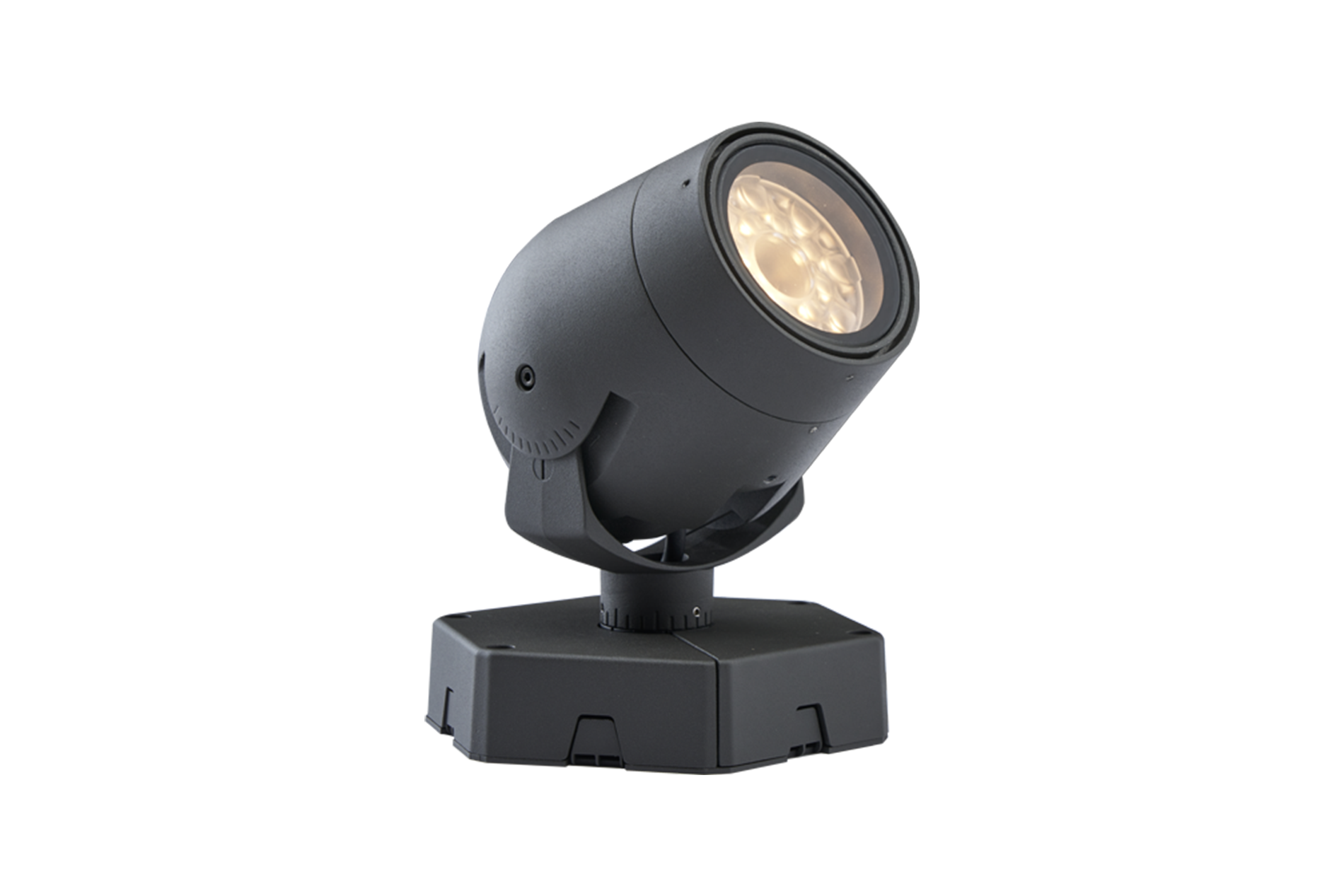

Vader One
Everything about Vader One is synonymous with versatility. A single light source, with the flexibility to choose from all shades of light, with a very warm colour temperature (1800K) and a colder one (4000K).
A single optical system with a manual Zoom to adjust to the most suitable beam opening and meet the changing needs throughout the duration of a project.
A single device for remote control of fixtures (0-10V and 1-10V, DALI, DMX).
A single optical system with a manual Zoom to adjust to the most suitable beam opening and meet the changing needs throughout the duration of a project.
A single device for remote control of fixtures (0-10V and 1-10V, DALI, DMX).

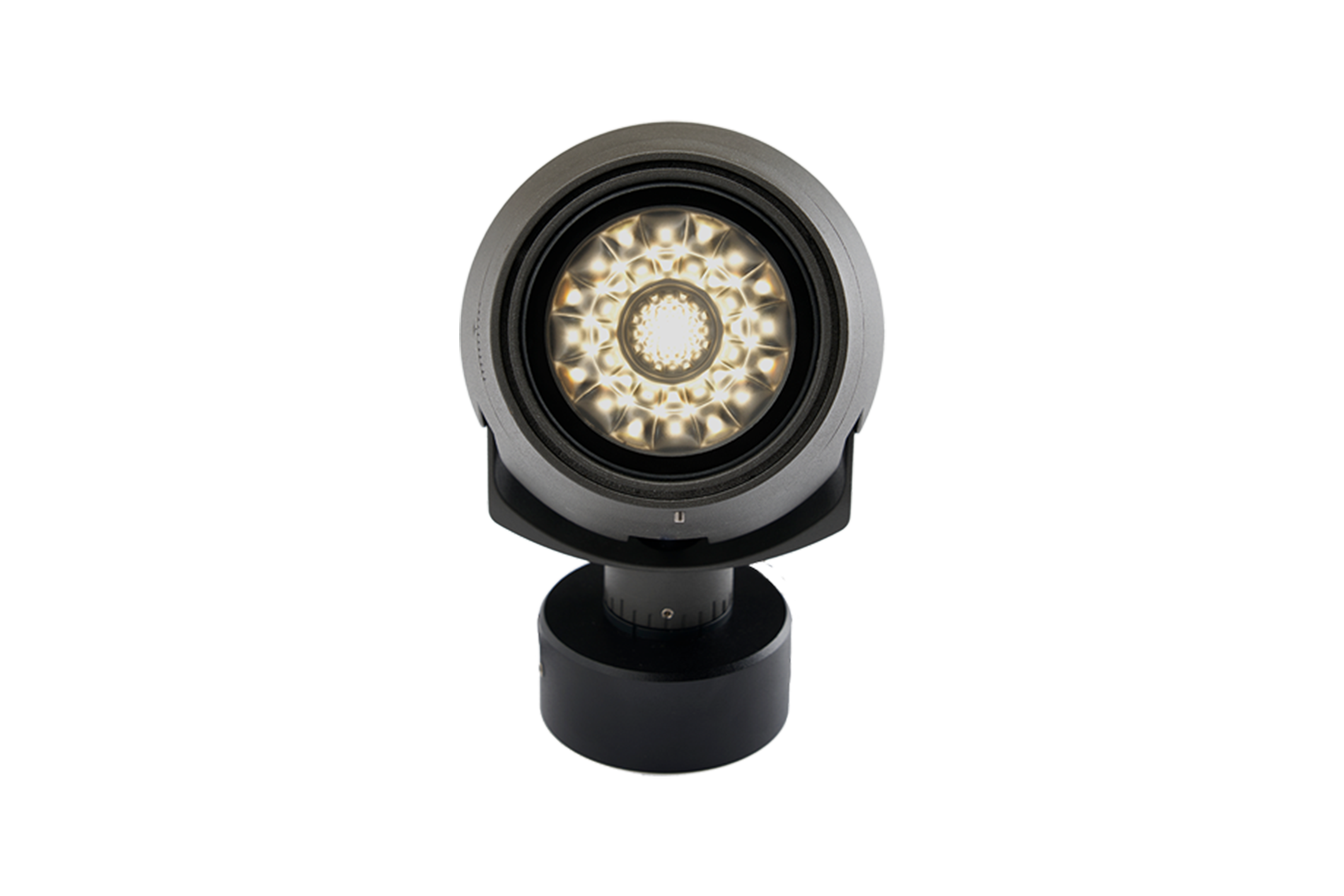

Vader Solo
A professional projector equipped with high performance monochrome LED sources, Vader Solo is the ideal tool for projection lighting. The innovative Zoom optic the entire range is equipped with makes it possible to choose the ideal beam angle with extreme ease, even in the installation phase. Available in four colour temperatures Vader Solo provides power and versatility for effective lighting of large surfaces or from great distances.
One equals four
Vader Solo is the most powerful fixture in the range. It is four times more powerful than versions equipped with Tunable White sources, with real emission up to 3696lm and among the best on the market.

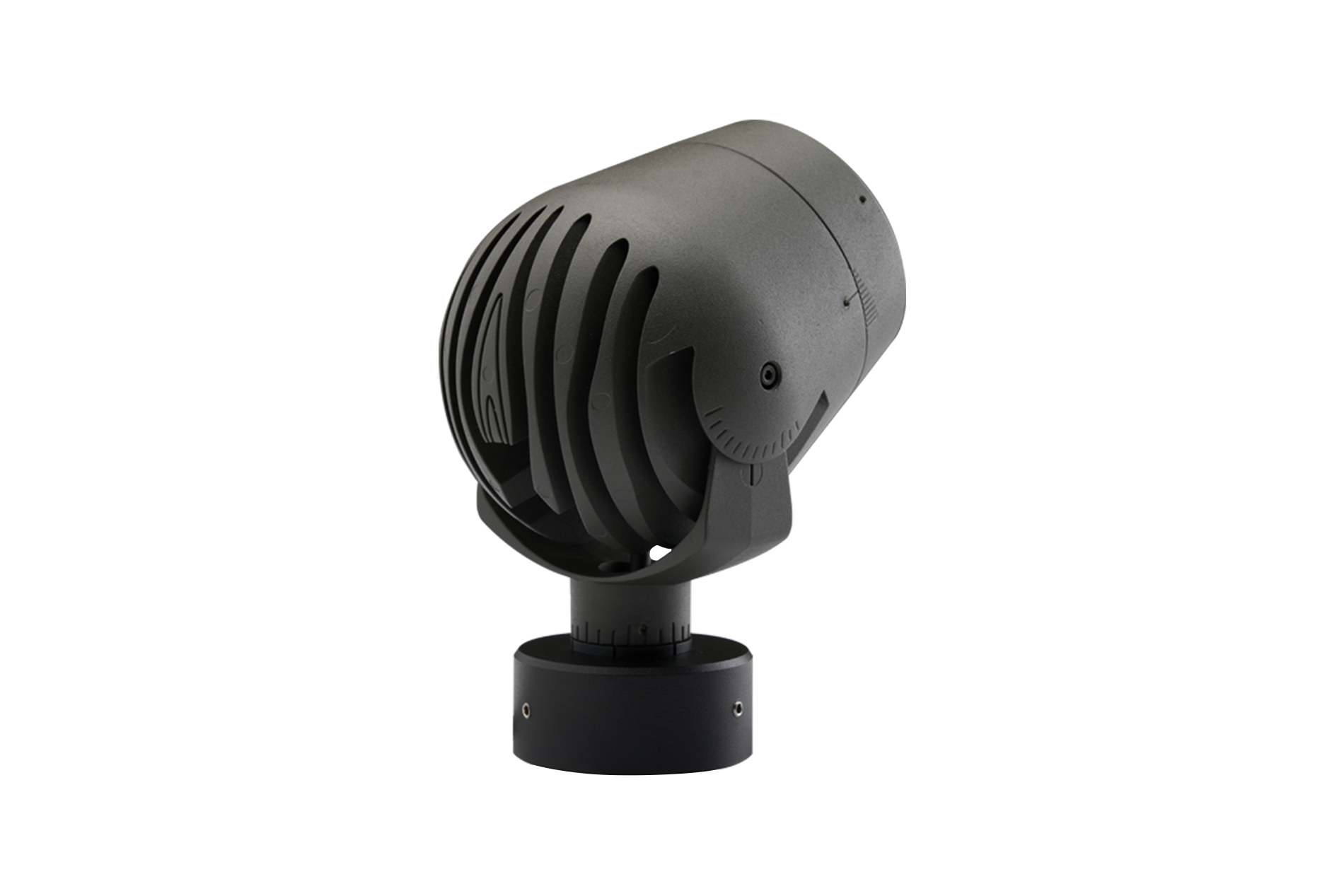

Design
With a compact, soft, rounded shape, the Vader range was designed down the smallest detail to be high performance and easy to use.
The electrical and mechanical characteristics allow it to withstand any temperature from-35° a +50°, in places with harsh winters and in very hot and arid environments.
The electrical and mechanical characteristics allow it to withstand any temperature from-35° a +50°, in places with harsh winters and in very hot and arid environments.
Adjustability

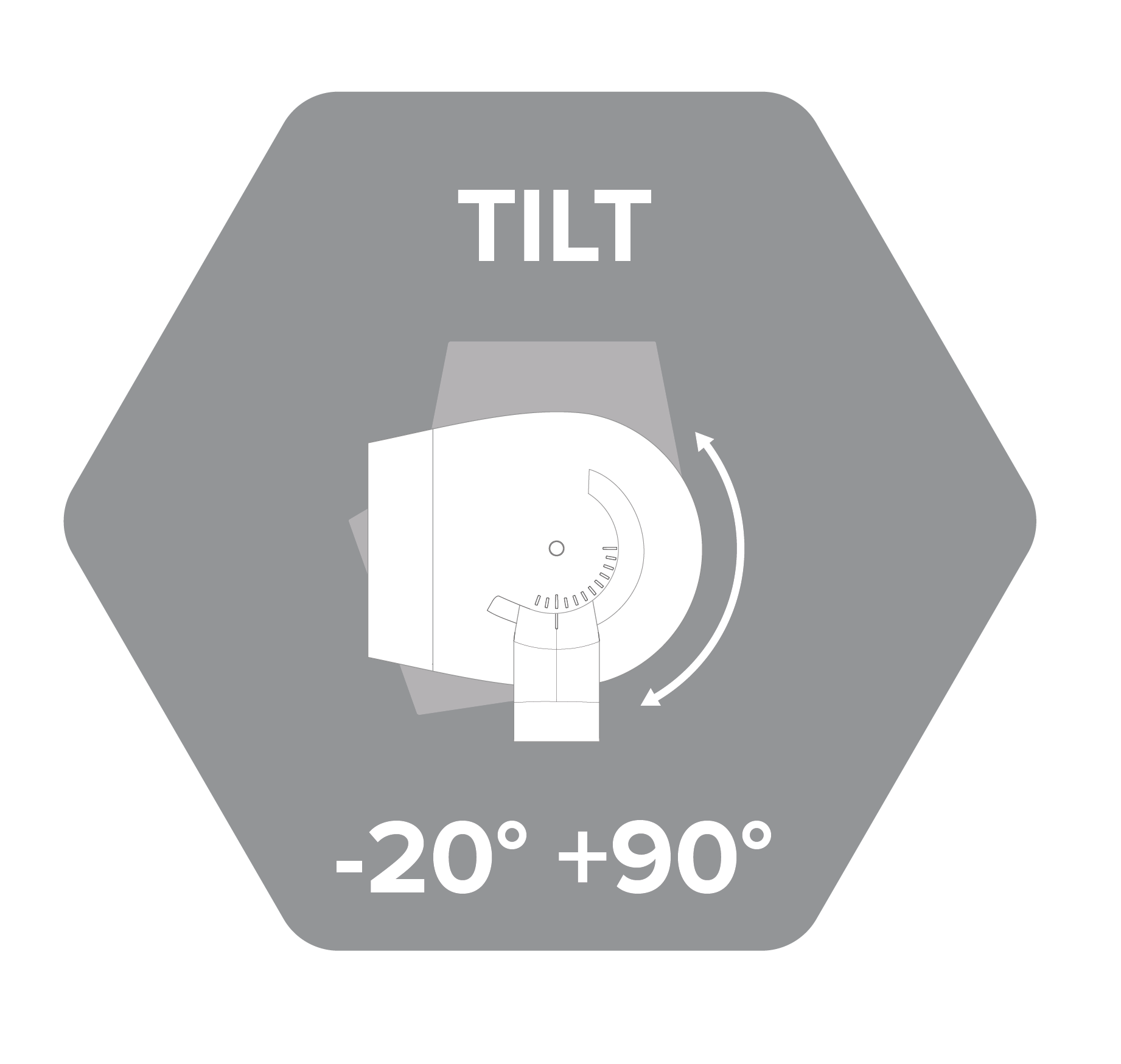

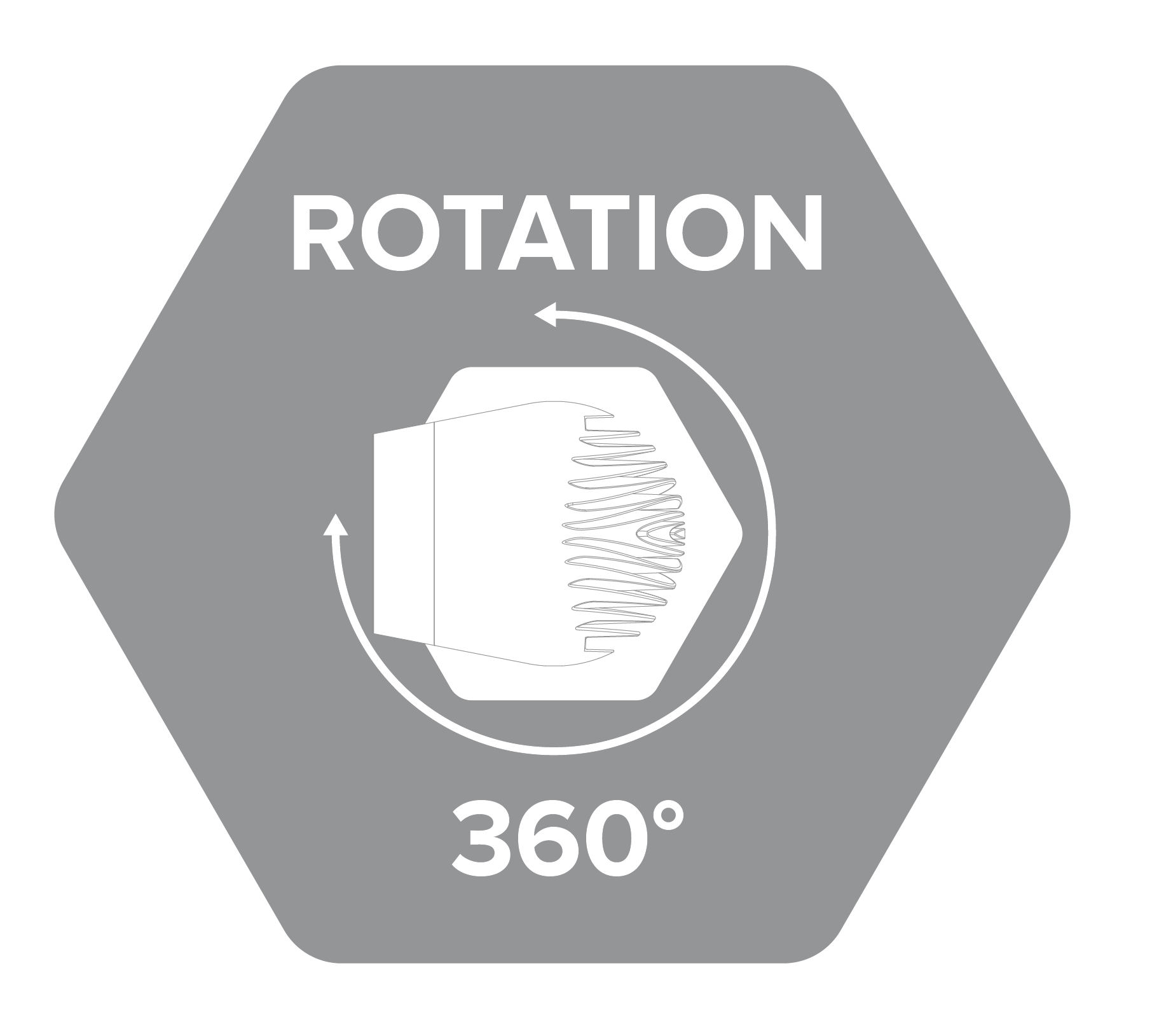

The projector can be quickly rotated 360° in the horizontal plane and tilted -20°+90° vertically with easy using two lockable adjustment rings.
Zoom
The Vader Zoom optical system was developed for manual adjustment of the light beam with emissions from Spot to Medium Wide Flood. The adjustment is continuous, and lockable, and a practical graduated scale facilitates replication across multiple fixtures.
Optic Accessories
A wide range of optical and installation accessories allow for further fine tuning.
Cylindrical screen - short version.
Cylindrical screen - long version.

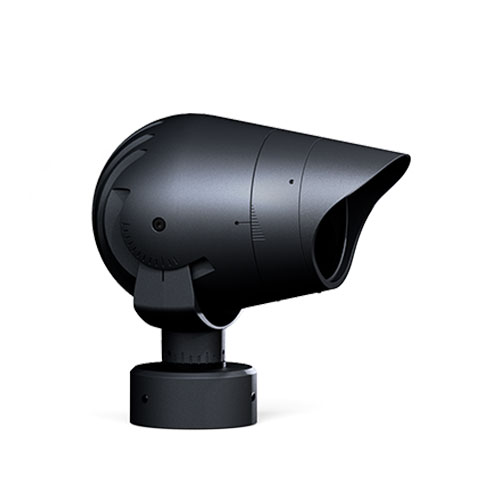

Asymmetric screen.
Blade of light filter.
Asymmetric screen with Wall Washer effect.
Cylindrical screen - short version.
Cylindrical screen - long version.
Asymmetric screen.
Blade of light filter.
Asymmetric screen with Wall Washer effect.
1 / 1
1 / 1
1 / 1
1 / 1
Asymmetric screen
Asymmetric screen

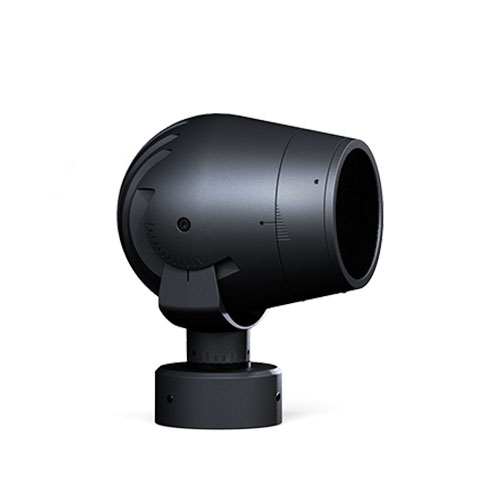

Blade of light filter
Blade of light filter

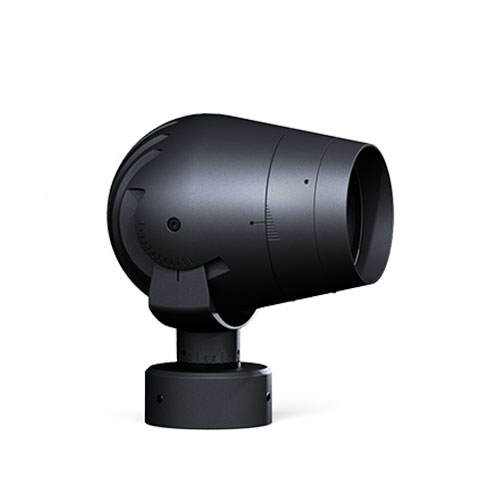

Cylindrical screen - short version
Cylindrical screen - short version

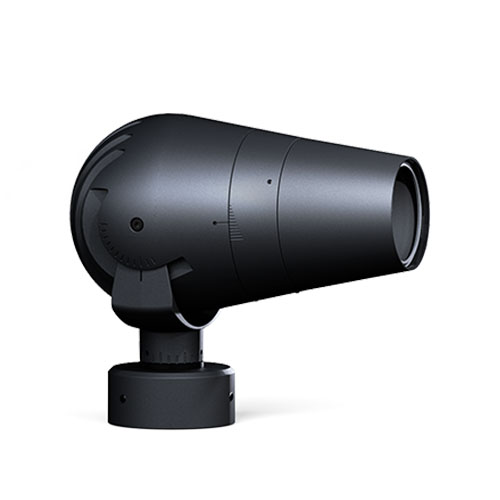

Cylindrical screen - long version
Cylindrical screen - long version

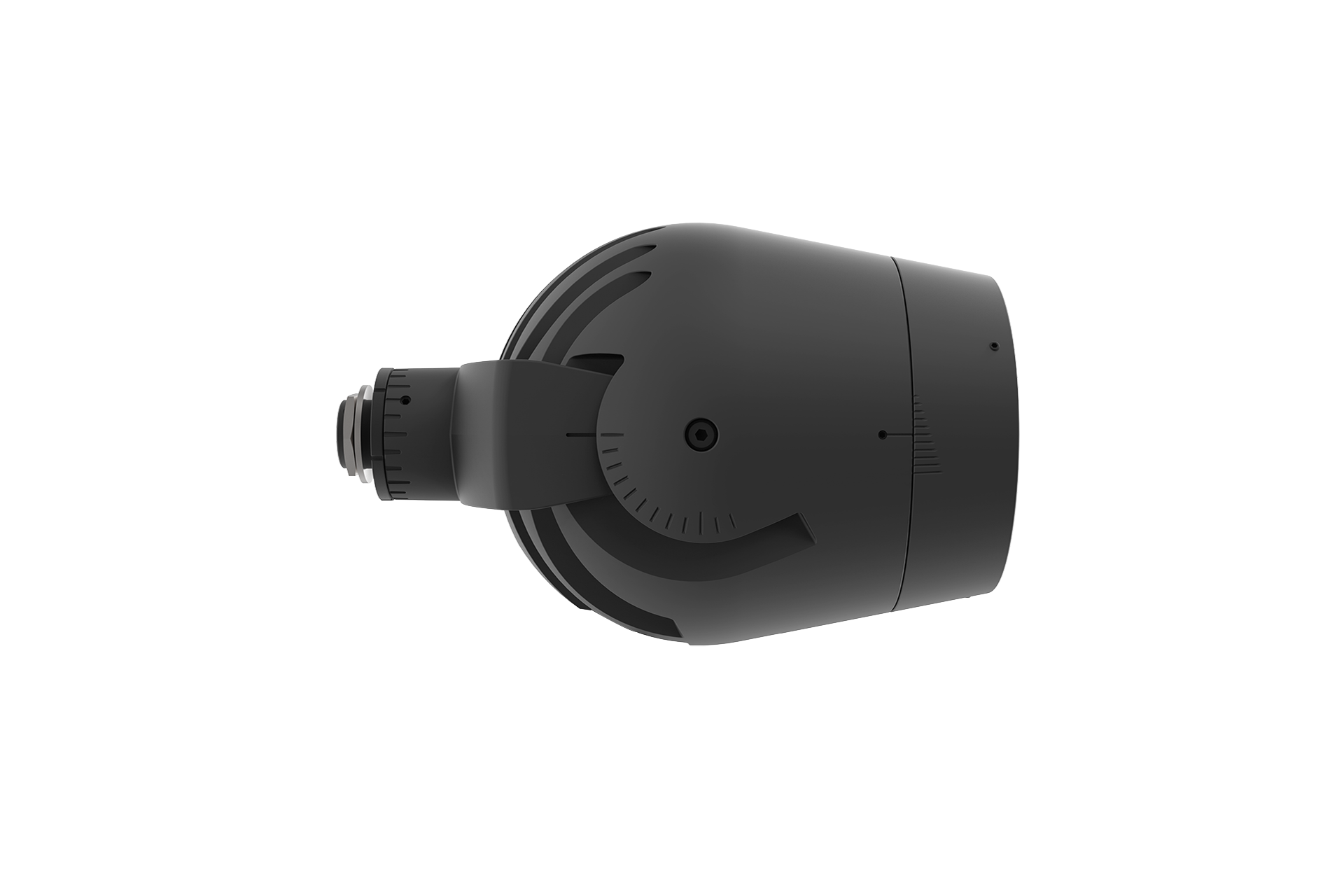

Installation
Vader is equipped at the base with a standard connection joint (G 1/2) which makes it compatible with different installation accessories for surface, pole, cornice and ground applications.

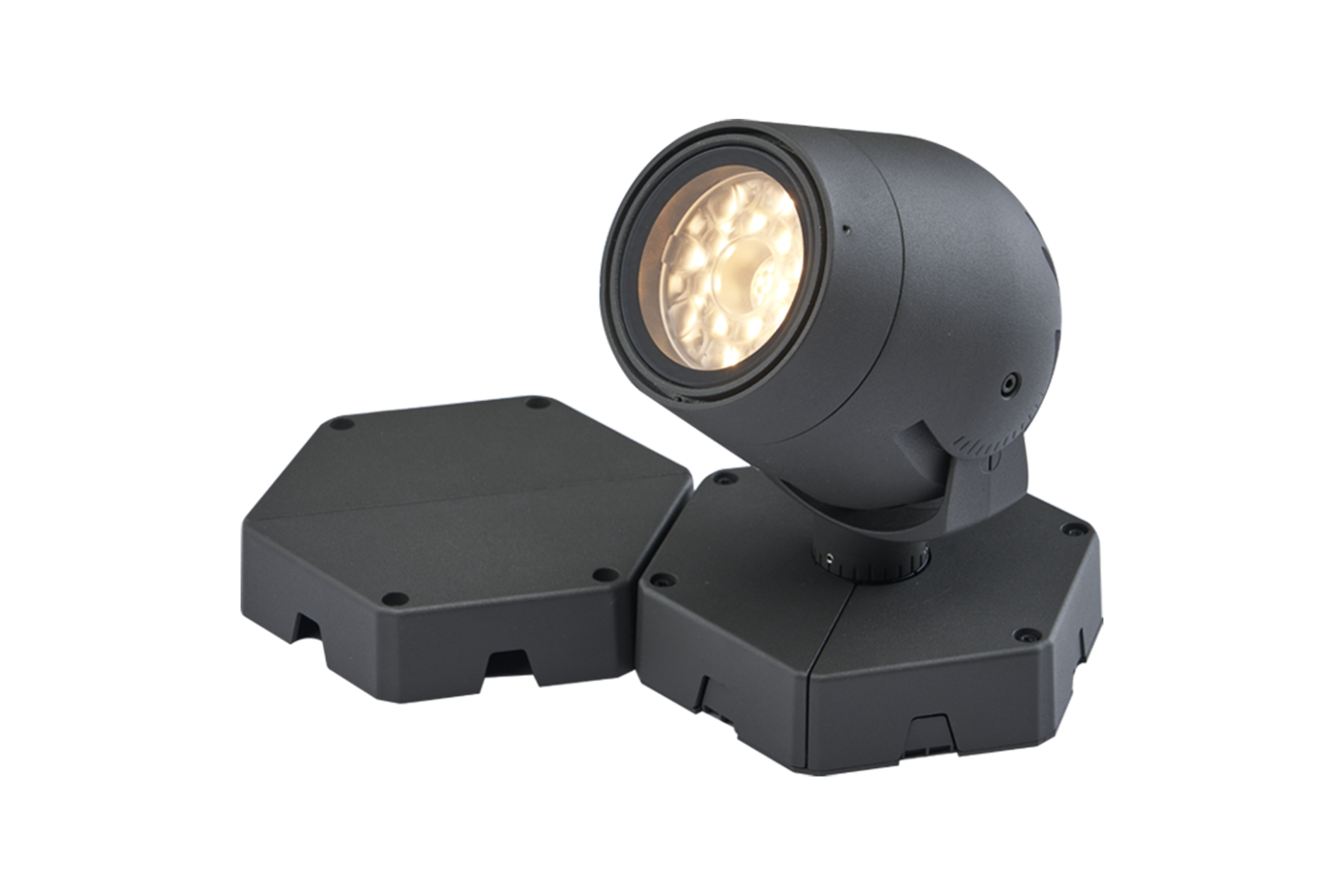

Vader One Clustering
One particular installation option for Vader One is provided with the unique hexagonal-shaped base, allowing for single and multiple geometric clustering.
Conceived as modular elements, Vader One projectors can be connected to each other, allowing the number of fixtures used to vary as project conditions change.
Conceived as modular elements, Vader One projectors can be connected to each other, allowing the number of fixtures used to vary as project conditions change.

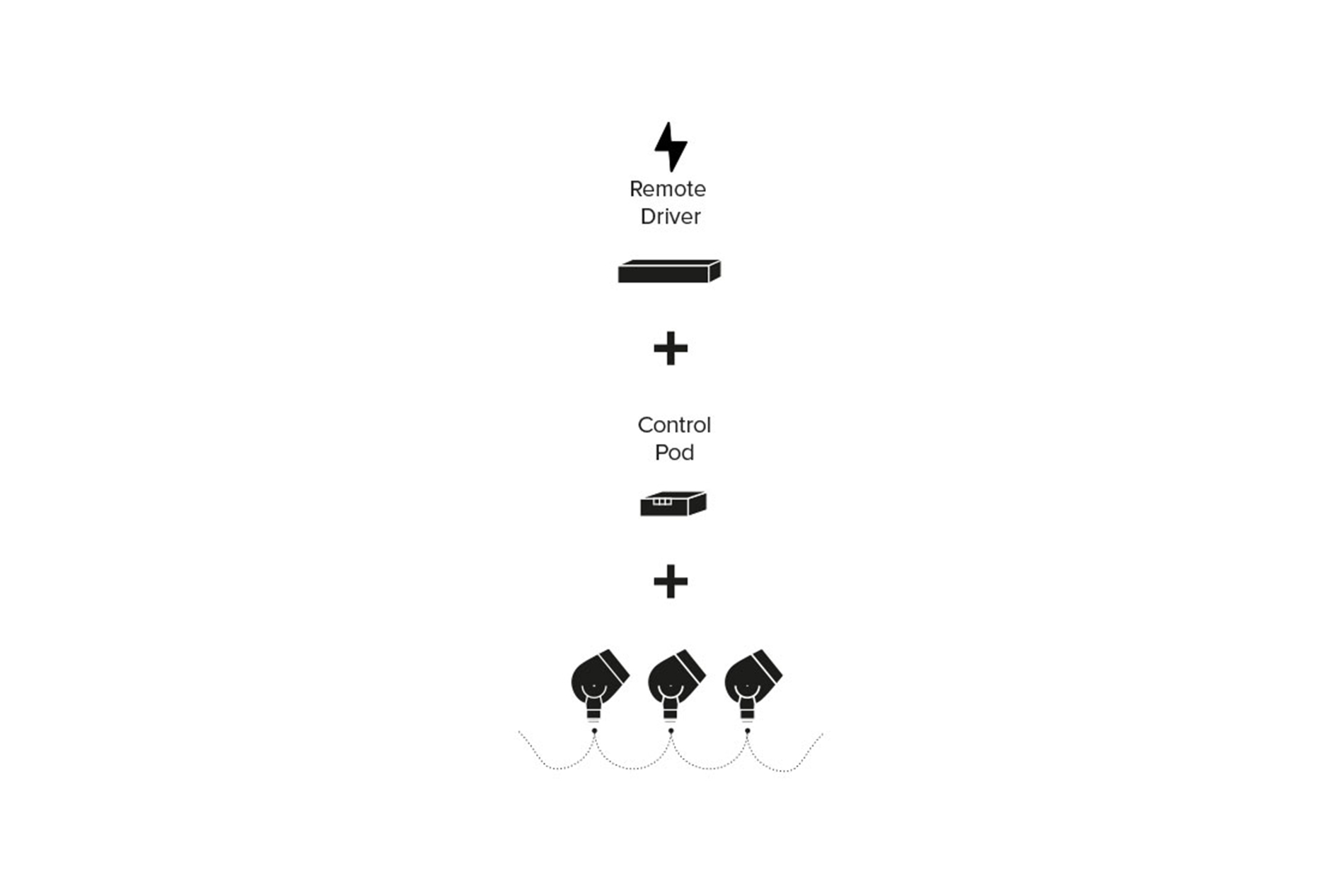

How to control Vader One
With a single device (Control Pod) that controls up to 64 fixtures, it is possible to dim and manage the colour temperature of the Vader One projector by choosing among three different control systems (DALI, 0/1-10V, DMX), for both multiple and individual configurations. Power supply is via remote driver both in single and multiple configurations (up to 8 fixtures).
