Logico Easy System 37 - Opal
Linear module

Code

T001MZ930D2PW

Light colour
3000K
90
Light distribution
Opal
Output
23.5W
1361lm
Power supply Control
220-240Vac
DALI2
Colour
2.8
IP40
IK02
1 / 3
Prev
Next

Technical Data

Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power20W
Nominal flux1361lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)100000h tq +25°C

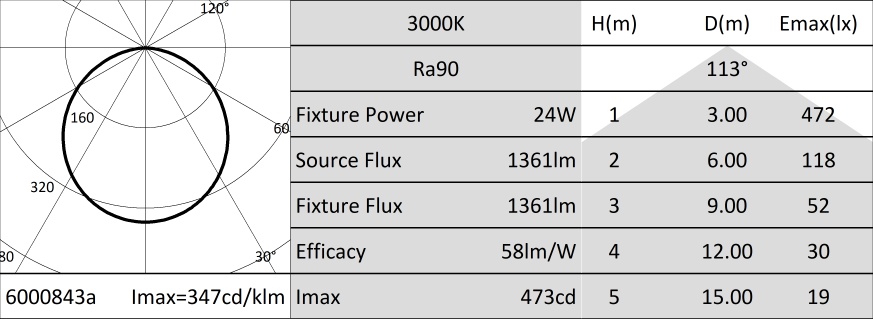

Illuminotechnical characteristics
Direct emission. Diffused light - OPAL optic: optical system made of a steel reflector with white polymer coating and a closing diffuser screen in opal anti-glare polycarbonate supplied in unrollable reels and available as a related code.
EmissionDIRECT
OpticREFLECTOR
Optical efficiency100%
Fixture flux1361lm
Luminous efficacy58lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 37mm section. Upper closing screen in white PVC.
Colour and finishWhite
DimensionsL=1168mm
Weight2.8Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic DALI2 driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Complete with 1.5mm² section through wiring allowing to reach a maximum length of 18 meters. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 15% in DC.
Fixture Power24W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI2
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
For angular configurations L light modules or the L blind joint accessory are avaiable.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Related codes

CodeDimensions
A002SL1L=6m
A002SL2L=9m
A002SL3L=15m
OPAL screen (Direct Emission).

For LOGICO EASY System 37 - OPAL.

Accessories

CodeColourDriver
A014SD2WDALI2
L-shaped blind joint.

Sizes 808x808x80mm. For LOGICO EASY System 37.
CodeColour
A003S2W
End caps (2 pieces).

For LOGICO EASY System 37 - OPAL.
CodeColour
A004W
Canopy with 5 poles terminal block. Feeding cable not included.
CodeColour
A005SW
Joint for screens. To be used for configurations longer than 15 meters.

For LOGICO EASY System 37.
Code
A006S
Bracket for ceiling installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 37.
Code
A007S
Bracket with adjustment system for suspended installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 37.
CodeVersion
A008TL=6m
A008UL=5m
A008VL=4m
A008WL=3m
A008XL=2m
A008YL=1m
A008ZL=0,5m
Suspension cable (2 pieces).
CodeVersion
A009Y5 Poli DALI
Terminal block (plug/socket). One for each power supply.

A009Y - For LOGICO EASY 37.
