Lighting Systems
Logico Easy System 37 - Opal
L module
Code
T002BV830ELDB
Light colour
3000K
80
80
Light distribution
Opal
Output
28W
2443lm
2443lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra80.
Energy efficiency classD
Nominal power2x24,5W
Nominal flux2x4886lm
Colour rendering index80
Rf84
Rg95
CCT nominal3000K
Lifetime (L80/B10)100000h tq +25°C

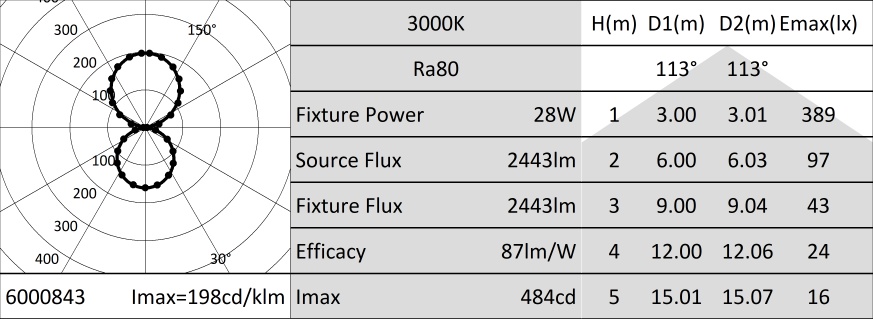

Illuminotechnical characteristics
Direct/indirect emission. Diffused light - OPAL optic: optical system made of a steel reflector with white polymer coating and a closing diffuser screen in opal anti-glare polycarbonate supplied in unrollable reels and available as a related code.
EmissionDIRECT/INDIRECT
OpticREFLECTOR
Optical efficiency100%
Fixture flux2x2443lm
Luminous efficacy175lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 37mm section. Upper closing screen in translucent polycarbonate.
Colour and finishBlack
DimensionsAxB=808x808mm
Weight3.15Kg
VersionL CONNECTOR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic ON-OFF driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Complete with 1.5mm² section through wiring allowing to reach a maximum length of 18 meters. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power2x28W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | Dimensions | ||||
|---|---|---|---|---|---|
| A002SL1 | L=6m | ||||
| A002SL2 | L=9m | ||||
| A002SL3 | L=15m |
OPAL screen (Direct Emission).
For LOGICO EASY System 37 - OPAL.
For LOGICO EASY System 37 - OPAL.
Accessories
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| A014SELB |  | ON-OFF |
L-shaped blind joint.
Sizes 808x808x80mm. For LOGICO EASY System 37.
Sizes 808x808x80mm. For LOGICO EASY System 37.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A003S2B | |
End caps (2 pieces).
For LOGICO EASY System 37 - OPAL.
For LOGICO EASY System 37 - OPAL.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A004B | |
Canopy with 5 poles terminal block.
Feeding cable not included.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A005SB | |
Joint for screens.
To be used for configurations longer than 15 meters.
For LOGICO EASY System 37.
For LOGICO EASY System 37.
| Code | |||||
|---|---|---|---|---|---|
| A007S |
Bracket with adjustment system for suspended installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 37.
For LOGICO EASY 37.
| Code | Version | ||||
|---|---|---|---|---|---|
| A008T | L=6m | ||||
| A008U | L=5m | ||||
| A008V | L=4m | ||||
| A008W | L=3m | ||||
| A008X | L=2m | ||||
| A008Y | L=1m | ||||
| A008Z | L=0,5m |
Suspension cable (2 pieces).
| Code | Version | ||||
|---|---|---|---|---|---|
| A009Z | 3 Poli ON-OFF |
Terminal block (plug/socket).
One for each power supply.
A009Z - For LOGICO EASY 37 | 57 | 100.
A009Z - For LOGICO EASY 37 | 57 | 100.
