Logico Easy System 37 - UGR19
Linear module
Code
T003BY930D2DB
Light colour
3000K
90
90

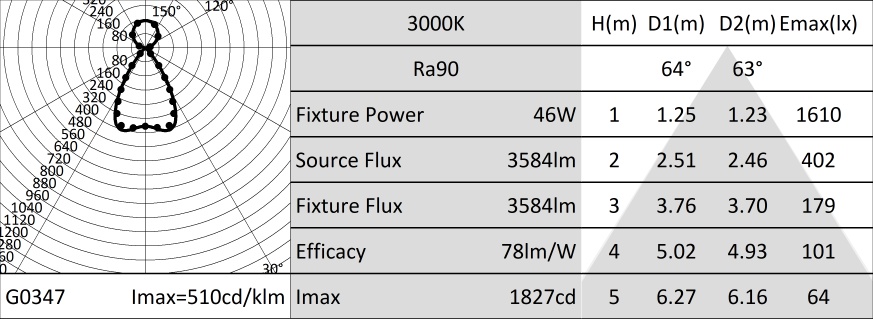

Light distribution
UGR19
Output
46W
3584lm
3584lm
Power supply
Control
220-240Vac
DALI2
DALI2
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classD, E
Nominal power39W
Nominal flux3584lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)100000h tq +25°C
Illuminotechnical characteristics
Direct/indirect emission. Controlled light. UGR19 Optics: optical system made of lenses with differentiated facets for optimizing the direction of the luminous flux and cellular optics in black anti-glare polycarbonate (UGR<19 and L65<200 cd/m² EN-12464-1).
EmissionDIRECT/INDIRECT
OpticCELLULAR
Optical efficiency100%
Fixture flux3584lm
Luminous efficacy78lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 37mm section. Upper closing screen in translucent polycarbonate.
Colour and finishBlack
DimensionsL=1400mm
Weight2.85Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic DALI2 driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Complete with 1.5mm² section through wiring allowing to reach a maximum length of 18 meters. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 15% in DC.
Fixture Power46W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI2
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
For angular configurations the L blind joint accessory is avaiable.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| A014SD2B |  | DALI2 |
L-shaped blind joint.
Sizes 808x808x80mm. For LOGICO EASY System 37.
Sizes 808x808x80mm. For LOGICO EASY System 37.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A003S1B | |
End caps (2 pieces).
For LOGICO EASY System 37 - UGR19.
For LOGICO EASY System 37 - UGR19.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A004B | |
Canopy with 5 poles terminal block.
Feeding cable not included.
| Code | |||||
|---|---|---|---|---|---|
| A007S |
Bracket with adjustment system for suspended installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 37.
For LOGICO EASY 37.
| Code | Version | ||||
|---|---|---|---|---|---|
| A008T | L=6m | ||||
| A008U | L=5m | ||||
| A008V | L=4m | ||||
| A008W | L=3m | ||||
| A008X | L=2m | ||||
| A008Y | L=1m | ||||
| A008Z | L=0,5m |
Suspension cable (2 pieces).
| Code | Version | ||||
|---|---|---|---|---|---|
| A009Y | 5 Poli DALI |
Terminal block (plug/socket).
One for each power supply.
A009Y - For LOGICO EASY 37.
A009Y - For LOGICO EASY 37.
