Lighting Systems
Logico Easy System 37 - UGR19
Linear module
Code
T003MZ940D2DB
Light colour
4000K
90
90
Light distribution
UGR19
Output
18.5W
1683lm
1683lm
Power supply
Control
220-240Vac
DALI2
DALI2
Colour
1 / 3
Technical Data
Concept
Linear LED fixture for ceiling mounted or suspension system installation
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classD
Nominal power15W
Nominal flux1683lm
Colour rendering index90
Rf92
Rg101
CCT nominal4000K
Lifetime (L80/B10)100000h tq +25°C

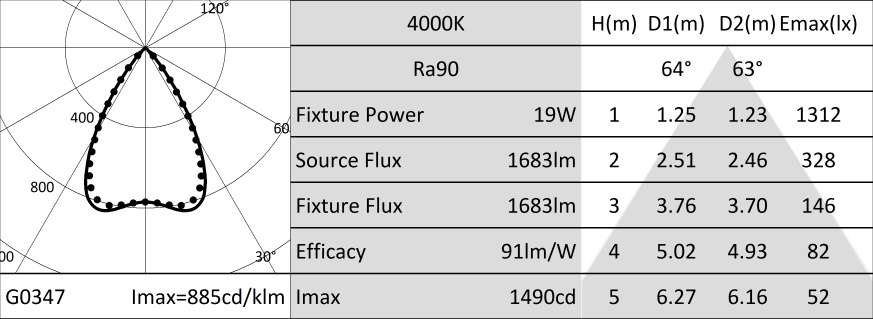

Illuminotechnical characteristics
Direct emission. Controlled light. UGR19 Optics: optical system made of lenses with differentiated facets for optimizing the direction of the luminous flux and cellular optics in black anti-glare polycarbonate (UGR<19 and L65<200 cd/m² EN-12464-1).
EmissionDIRECT
OpticCELLULAR
Optical efficiency100%
Fixture flux1683lm
Luminous efficacy91lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 37mm section. Upper closing screen in black PVC.
Colour and finishBlack
DimensionsL=1120mm
Weight2.47Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic DALI2 driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Complete with 1.5mm² section through wiring allowing to reach a maximum length of 18 meters. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 15% in DC.
Fixture Power19W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI2
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
For angular configurations the L blind joint accessory is avaiable.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| A014SD2B |  | DALI2 |
L-shaped blind joint.
Sizes 808x808x80mm. For LOGICO EASY System 37.
Sizes 808x808x80mm. For LOGICO EASY System 37.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A003S1B | |
End caps (2 pieces).
For LOGICO EASY System 37 - UGR19.
For LOGICO EASY System 37 - UGR19.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A004B | |
Canopy with 5 poles terminal block.
Feeding cable not included.
| Code | |||||
|---|---|---|---|---|---|
| A006S |
Bracket for ceiling installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 37.
For LOGICO EASY 37.
| Code | |||||
|---|---|---|---|---|---|
| A007S |
Bracket with adjustment system for suspended installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 37.
For LOGICO EASY 37.
| Code | Version | ||||
|---|---|---|---|---|---|
| A008T | L=6m | ||||
| A008U | L=5m | ||||
| A008V | L=4m | ||||
| A008W | L=3m | ||||
| A008X | L=2m | ||||
| A008Y | L=1m | ||||
| A008Z | L=0,5m |
Suspension cable (2 pieces).
| Code | Version | ||||
|---|---|---|---|---|---|
| A009Y | 5 Poli DALI |
Terminal block (plug/socket).
One for each power supply.
A009Y - For LOGICO EASY 37.
A009Y - For LOGICO EASY 37.
