Lighting Systems
Logico Easy System 57 - Opal HO
Linear module Emergency
Code
T006BW840D2PW
Light colour
4000K
80
80
Light distribution
Opal
Output
126W
12596lm
12596lm
Power supply
Control
220-240Vac
DALI2 (EMERGENCY VERSION)
DALI2 (EMERGENCY VERSION)
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra80.
Energy efficiency classD
Nominal power110W
Nominal flux12596lm
Colour rendering index80
Rf84
Rg95
CCT nominal4000K
Lifetime (L80/B10)100000h tq +25°C
Illuminotechnical characteristics
Direct/indirect emission. Diffused light - OPAL High Output optic: optical system made of a steel reflector with white polymer coating and a closing diffuser screen in opal anti-glare polycarbonate supplied in unrollable reels and available as a related code.
EmissionDIRECT/INDIRECT
OpticREFLECTOR
Optical efficiency100%
Fixture flux12596lm
Emergency fixture flux BLF6.7% (Direct emission)

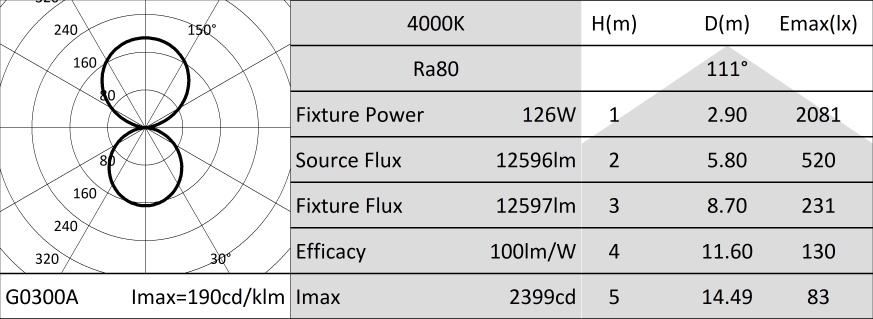

Luminous efficacy100lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 57mm section. Upper closing screen in translucent polycarbonate.
Colour and finishWhite
DimensionsL=2916mm
Weight6.77Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic DALI2 driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Preset for through wiring allowing to reach a maximum length of 18 meters. Equipped with emergency pack - permanent emergency (1h autonomy and 24h recharge).
Fixture Power126W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI2 (EMERGENCY VERSION)
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
Casambi control system available using a dedicated accessory. Consult factory to verify the quantity of DALI drivers installed. For angular configurations L light modules and the L blind joint accessory are avaiable. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | Dimensions | ||||
|---|---|---|---|---|---|
| A002ML1 | L=6m | ||||
| A002ML2 | L=9m | ||||
| A002ML3 | L=15m |
OPAL screen (Direct Emission).
For LOGICO EASY System 57 - OPAL.
For LOGICO EASY System 57 - OPAL.
Accessories
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| A014MD2W |  | DALI2 |
L-shaped blind joint.
Sizes 818x818x80mm. For LOGICO EASY System 57.
Sizes 818x818x80mm. For LOGICO EASY System 57.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A003M2W | |
End caps (2 pieces).
For LOGICO EASY System 57 - OPAL HO.
For LOGICO EASY System 57 - OPAL HO.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A004W | |
Canopy with 5 poles terminal block.
Feeding cable not included.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A005MW | |
Joint for screens.
To be used for configurations longer than 15 meters.
For LOGICO EASY System 57.
For LOGICO EASY System 57.
| Code | |||||
|---|---|---|---|---|---|
| A007M |
Bracket with adjustment system for suspended installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 57.
For LOGICO EASY 57.
| Code | Version | ||||
|---|---|---|---|---|---|
| A008T | L=6m | ||||
| A008U | L=5m | ||||
| A008V | L=4m | ||||
| A008W | L=3m | ||||
| A008X | L=2m | ||||
| A008Y | L=1m | ||||
| A008Z | L=0,5m |
Suspension cable (2 pieces).
| Code | Version | ||||
|---|---|---|---|---|---|
| A009X | 5 Poli DALI |
Terminal block (plug/socket).
One for each power supply.
A009X - For LOGICO EASY 57 | 100.
A009X - For LOGICO EASY 57 | 100.
