Logico Easy System 57 - Opal HO
Linear module Emergency

Code

T006MX840ELPW

Light colour
4000K
80
Light distribution
Opal
Output
56W
4563lm
Power supply Control
220-240Vac
ON-OFF (EMERGENCY VERSION)
Colour
5.74
IP40
IK02
1 / 3
Prev
Next

Technical Data

Concept
LED luminaire for ceiling or suspended system installation. Emergency linear module
Source
LED Engine made of linear LED boards Ra80.
Energy efficiency classD
Nominal power48W
Nominal flux4563lm
Colour rendering index80
Rf84
Rg95
CCT nominal4000K
Lifetime (L80/B10)100000h tq +25°C

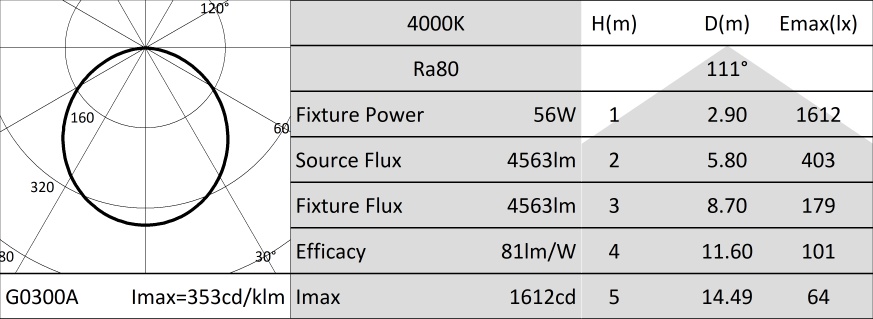

Illuminotechnical characteristics
Direct emission. Diffused light - OPAL High Output optic: optical system made of a steel reflector with white polymer coating and a closing diffuser screen in opal anti-glare polycarbonate supplied in unrollable reels and available as a related code.
EmissionDIRECT
OpticREFLECTOR
Optical efficiency100%
Fixture flux4563lm
Emergency fixture flux BLF8.2%
Luminous efficacy81lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 57mm section. Upper closing screen in white PVC.
Colour and finishWhite
DimensionsL=2336mm
Weight5.735Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic ON-OFF driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Preset for through wiring allowing to reach a maximum length of 18 meters. Equipped with emergency pack - permanent emergency (1h autonomy and 24h recharge).
Fixture Power56W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF (EMERGENCY VERSION)
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
For angular configurations L light modules and the L blind joint accessory are avaiable. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Related codes

CodeDimensions
A002ML1L=6m
A002ML2L=9m
A002ML3L=15m
OPAL screen (Direct Emission).

For LOGICO EASY System 57 - OPAL.

Accessories

CodeColourDriver
A014MELWON-OFF
L-shaped blind joint.

Sizes 818x818x80mm. For LOGICO EASY System 57.
CodeColour
A003M2W
End caps (2 pieces).

For LOGICO EASY System 57 - OPAL HO.
CodeColour
A004W
Canopy with 5 poles terminal block. Feeding cable not included.
CodeColour
A005MW
Joint for screens. To be used for configurations longer than 15 meters.

For LOGICO EASY System 57.
Code
A006M
Bracket for ceiling installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 57.
Code
A007M
Bracket with adjustment system for suspended installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 57.
CodeVersion
A008TL=6m
A008UL=5m
A008VL=4m
A008WL=3m
A008XL=2m
A008YL=1m
A008ZL=0,5m
Suspension cable (2 pieces).
CodeVersion
A009Z3 Poli ON-OFF
Terminal block (plug/socket). One for each power supply.

A009Z - For LOGICO EASY 37 | 57 | 100.
