Logico Easy System 100 - Opal / UGR19
Linear module Emergency

Code

T015MZ930ELPW

Light colour
3000K
90
Light distribution
Opal/UGR19
Output
30W
2183-2254lm
Power supply Control
220-240Vac
ON-OFF (EMERGENCY VERSION)
Colour
3.95
IP40
IK02

OP

UGR

1 / 4
Prev
Next

Technical Data

Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power26W
Nominal fluxSee photometries
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)100000h tq +25°C
Illuminotechnical characteristics
Direct emission in two effect variants: diffused light - OPAL optics - and controlled light - UGR19 optics. Diffused light - OPAL optic: optical system made of a steel reflector with white polymer coating and a closing diffuser screen in opal anti-glare polycarbonate supplied in unrollable reels and available as a related code. Controlled light - UGR19 optic: optical system made of a steel reflector with white polymer coating and UGR closing diffuser screen supplied in unrollable reels and available as a related code (UGR<19 and L65<3000 cd/m² EN-12464-1).
EmissionDIRECT
OpticREFLECTOR
Optical efficiency100%

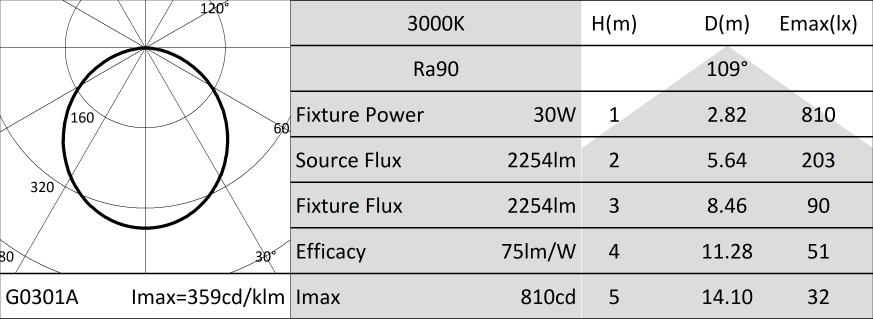

Fixture fluxOP - 2254lm

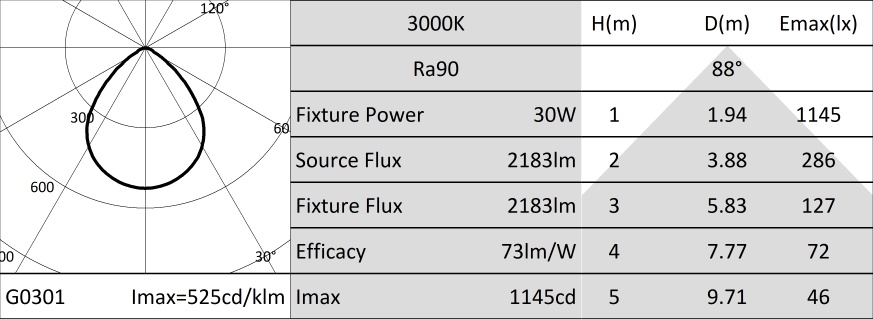

UGR - 2183lm
Emergency fixture flux BLF15%
Luminous efficacyOP - 75lm/W
UGR - 73lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 100mm section. Upper closing screen in white PVC.
Colour and finishWhite
DimensionsL=1168mm
Weight3.95Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic ON-OFF driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Preset for through wiring allowing to reach a maximum length of 18 meters. Equipped with emergency pack - permanent emergency (1h autonomy and 24h recharge).
Fixture Power30W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF (EMERGENCY VERSION)
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
For angular configurations L light modules and the L blind joint accessory are avaiable. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Related codes

CodeDimensions
A001LL1L=6m
A001LL2L=9m
A001LL3L=15m
UGR19 screen (Direct Emission).

For LOGICO EASY System 100 - UGR19.
CodeDimensions
A002LL1L=6m
A002LL2L=9m
A002LL3L=15m
OPAL screen (Direct Emission).

For LOGICO EASY System 100 - OPAL.

Accessories

CodeColour
A003L1W
End caps (2 pieces).

For LOGICO EASY System 100.
CodeColour
A004W
Canopy with 5 poles terminal block. Feeding cable not included.
CodeColour
A005LW
Joint for screens. To be used for configurations longer than 15 meters.

For LOGICO EASY System 100.
Code
A006L
Bracket for ceiling installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 100.
Code
A007L
Bracket with adjustment system for suspended installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 100.
CodeVersion
A008TL=6m
A008UL=5m
A008VL=4m
A008WL=3m
A008XL=2m
A008YL=1m
A008ZL=0,5m
Suspension cable (2 pieces).
CodeVersion
A009Z3 Poli ON-OFF
Terminal block (plug/socket). One for each power supply.

A009Z - For LOGICO EASY 37 | 57 | 100.
