Lighting Systems
Logico Easy System 100 - Opal / UGR19
L module
Code
T016BV830D2PW
Light colour
3000K
80
80
Light distribution
Opal/UGR19
Output
32.5W
3322-3383lm
3322-3383lm
Power supply
Control
220-240Vac
DALI2
DALI2
Colour
OP
UGR
1 / 4
Technical Data
Source
LED Engine made of linear LED boards Ra80.
Energy efficiency classD
Nominal power2x28,5W

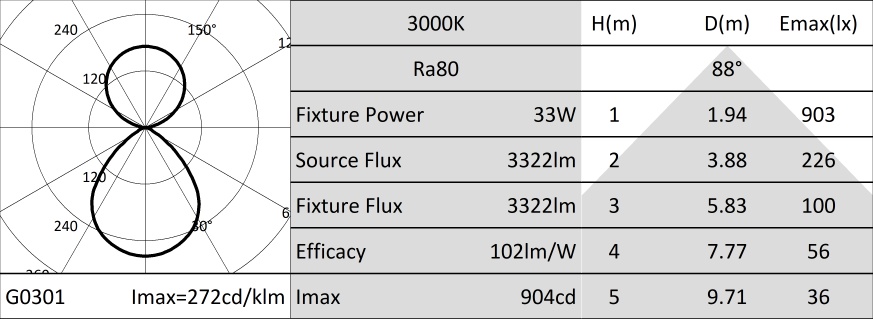

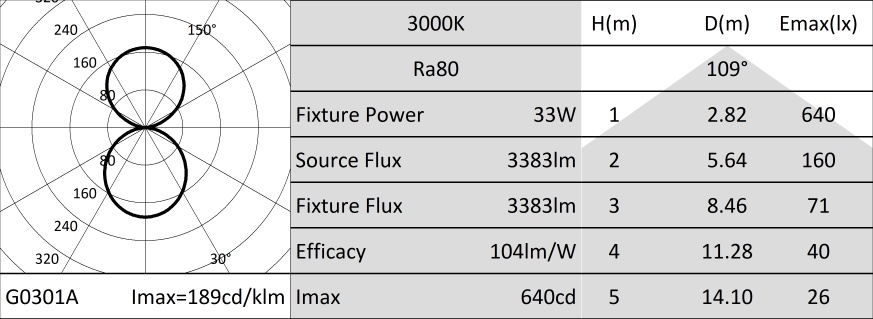

Nominal fluxSee photometries
Colour rendering index80
Rf84
Rg95
CCT nominal3000K
Lifetime (L80/B10)100000h tq +25°C
Illuminotechnical characteristics
Direct/indirect emission in two effect variants: diffused light - OPAL optics - and controlled light - UGR19 optics. Diffused light - OPAL optic: optical system made of a steel reflector with white polymer coating and a closing diffuser screen in opal anti-glare polycarbonate supplied in unrollable reels and available as a related code. Controlled light - UGR19 optic: optical system made of a steel reflector with white polymer coating and UGR closing diffuser screen supplied in unrollable reels and available as a related code (UGR<19 and L65<3000 cd/m² EN-12464-1).
EmissionDIRECT/INDIRECT
OpticREFLECTOR
Optical efficiency100%
Fixture fluxOP - 2x3383lm
UGR - 2x3322lm
UGR - 2x3322lm
Luminous efficacyOP - 208lm/W
UGR - 204lm/W
UGR - 204lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 100mm section. Upper closing screen in translucent polycarbonate.
Colour and finishWhite
DimensionsAxB=812x812mm
Weight4.1Kg
VersionL CONNECTOR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic DALI2 driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Preset for through wiring allowing to reach a maximum length of 18 meters. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 15% in DC.
Fixture Power2x33W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlDALI2
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
Casambi control system available using a dedicated accessory. Consult factory to verify the quantity of DALI drivers installed. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Related codes
| Code | Dimensions | ||||
|---|---|---|---|---|---|
| A001LL1 | L=6m | ||||
| A001LL2 | L=9m | ||||
| A001LL3 | L=15m |
UGR19 screen (Direct Emission).
For LOGICO EASY System 100 - UGR19.
For LOGICO EASY System 100 - UGR19.
| Code | Dimensions | ||||
|---|---|---|---|---|---|
| A002LL1 | L=6m | ||||
| A002LL2 | L=9m | ||||
| A002LL3 | L=15m |
OPAL screen (Direct Emission).
For LOGICO EASY System 100 - OPAL.
For LOGICO EASY System 100 - OPAL.
Accessories
| Code | Colour | ||||
|---|---|---|---|---|---|
| A003L1W |  |
End caps (2 pieces).
For LOGICO EASY System 100.
For LOGICO EASY System 100.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A004W | |
Canopy with 5 poles terminal block.
Feeding cable not included.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A005LW | |
Joint for screens.
To be used for configurations longer than 15 meters.
For LOGICO EASY System 100.
For LOGICO EASY System 100.
| Code | |||||
|---|---|---|---|---|---|
| A007L |
Bracket with adjustment system for suspended installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 100.
For LOGICO EASY 100.
| Code | Version | ||||
|---|---|---|---|---|---|
| A008T | L=6m | ||||
| A008U | L=5m | ||||
| A008V | L=4m | ||||
| A008W | L=3m | ||||
| A008X | L=2m | ||||
| A008Y | L=1m | ||||
| A008Z | L=0,5m |
Suspension cable (2 pieces).
| Code | Version | ||||
|---|---|---|---|---|---|
| A009X | 5 Poli DALI |
Terminal block (plug/socket).
One for each power supply.
A009X - For LOGICO EASY 57 | 100.
A009X - For LOGICO EASY 57 | 100.
1 / 2
| Code |
|---|
| 1T5349 |
IP20 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 2T0131 |
IP20 Extender for wireless control of LED driver with dimming DALI (or 1-10V) interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP20 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER 0/1-10V
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
